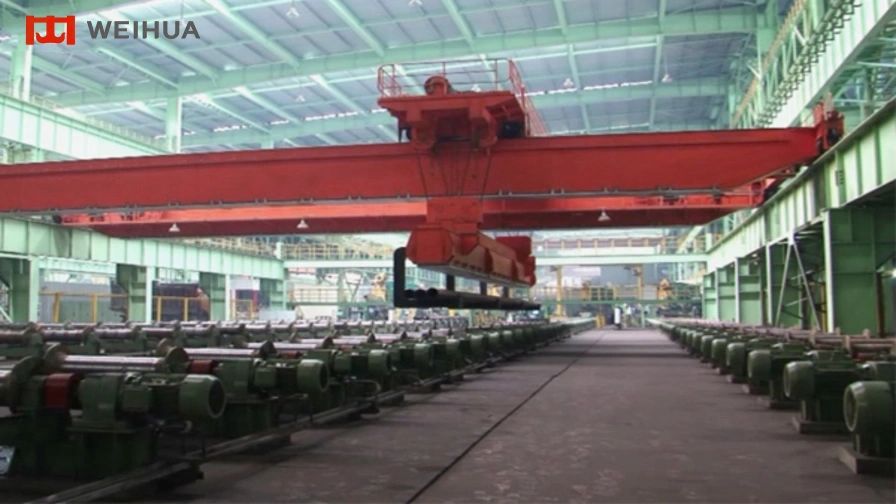

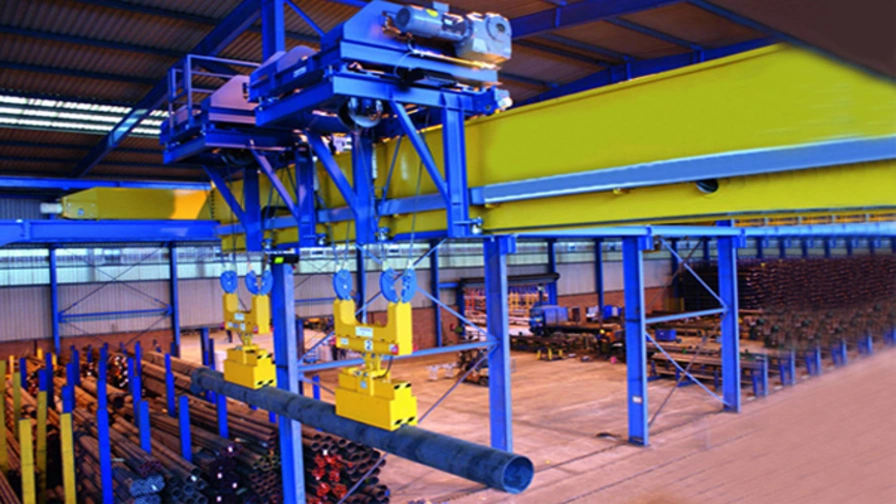

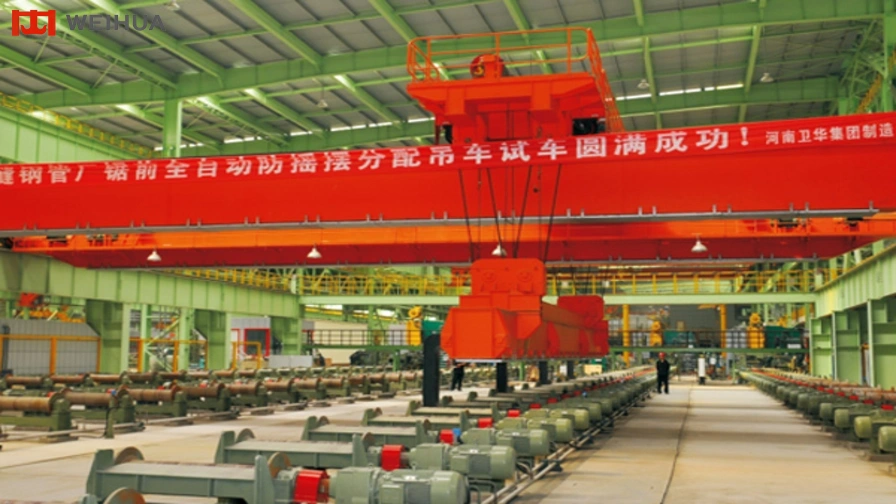

Intelligent steel pipe distribution overhead cranes are dedicated intelligent lifting equipment for front-end material sorting on steel pipe cutting production lines. The crane automatically transfers steel pipes from roller conveying tables to pre-designated stations, realizing fully unmanned intelligent pipe distribution workflows.
Weihua full-series overhead lifting equipment is widely deployed across mechanical manufacturing, metallurgical smelting, power generation, railway logistics, port terminals, petroleum exploitation and chemical processing industries. Our intelligent special cranes provide stable automatic handling support for numerous national key steel industry projects and large metallurgical production bases worldwide.
High-precision automatic positioning system
Position data collected by encoders is transmitted to PLC for real-time operation logic calculation and speed regulation control. Matched with V-shaped anti-sway wire rope layout, the load swing range is greatly suppressed, effectively lifting overall production efficiency and on-site operation safety.Full redundant safety design
Redundant backup systems are configured for the main hoisting mechanism, trolley travel assembly and core electrical components, drastically improving continuous operation stability and equipment reliability for long-cycle production lines.Integrated anti-sway + automatic positioning system
Enables fully automatic, fast and intelligent transfer, sorting and distribution of steel pipes without manual intervention.

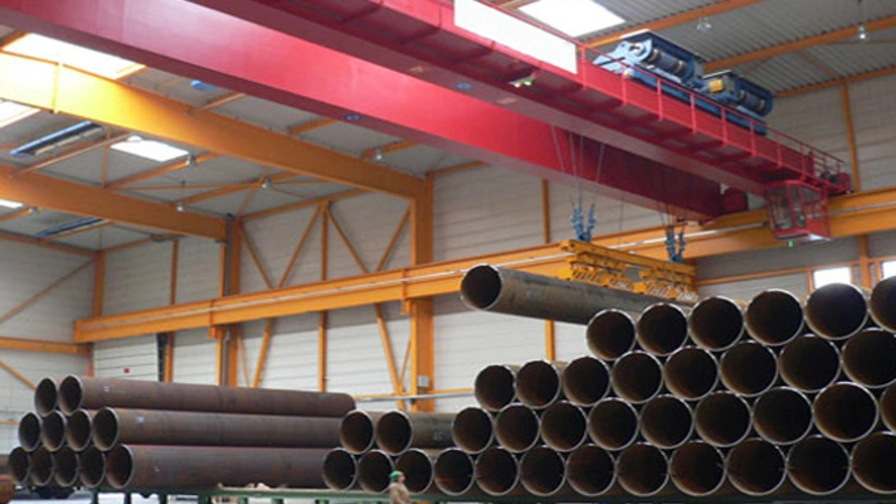

Weihua Crane delivers fully tailor-made intelligent steel pipe distribution overhead crane packages built for steel pipe processing factories, metallurgical warehouses and steel stockyards. Featuring stable load capacity and high-precision intelligent control, these custom cranes excel at automatic sorting, stacking and distributing steel pipes and various metal profiles.
All core technical indicators including lifting tonnage, working span, vertical lifting height and track gauge can be flexibly adjusted to fit different factory and warehouse layouts as well as special steel pipe automatic distribution process standards, supporting efficient, stable and safe unmanned continuous operation.
Optional Configurations
Full-electric and hybrid trolley driving assemblies
Integrated full-automatic unmanned operation system with wireless remote control module
Dedicated anti-sway and high-precision positioning unit for accurate steel pipe transportation and distribution
Energy-saving drive assemblies equipped with regenerative braking function
Custom structural redesign to match exclusive runway layouts inside steel pipe processing workshops and metal storage yards
| Lifting Capacity | t | 16+16 |
| Span | m | 26.5 |
| Lifting Height | m | 7 |
| Work Duty | A7 | |
| Speed | Lifting (m/min) | 1.2~12 |
| Crane Traveling (m/min) | 6.2~62 | |
| Trolley Traveling (m/min) | 20.6 | |
| Power | KW | 315 |
| Max Wheel Load | KN | 295 |
| Recommand Track | QU100 | |
| Power Supply | 3 Phase A.C.50Hz 380V |
