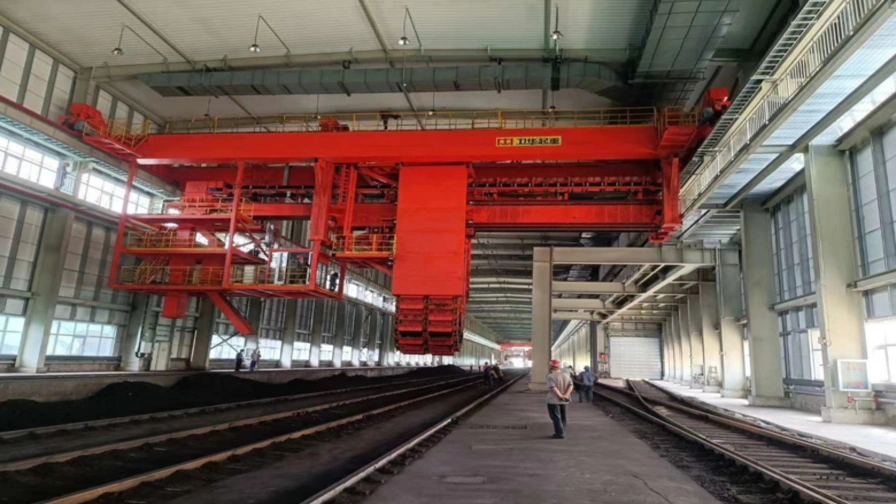

Chain Bucket Unloader Crane is a customized overhead bridge crane fitted with dedicated chain bucket unloading attachments, specially developed to empty granular bulk materials from trucks and railway wagons. Applicable raw materials cover coal, gypsum, shale, iron ore and other mineral bulk cargoes.

Applicable Bulk Material Particle Specifications

1. Coal & Gypsum: Maximum block size ≤300 mm; particles ≤100 mm make up over 85% of total volume, moisture content ≤13%

2. Shale: Maximum block size ≤150 mm; particles ≤80 mm make up over 85% of total volume

3. Iron Ore: Maximum block size ≤80 mm; particles ≤50 mm make up over 85% of total volume

Weihua full-series overhead lifting equipment is extensively applied in mechanical manufacturing, metallurgical smelting, power generation, railway logistics, port terminals, petroleum exploitation and chemical processing industries. Our specialized bulk handling cranes provide reliable unloading support for numerous national key construction projects and large industrial conglomerates worldwide.

1. Ultra-high unloading throughput up to 500 tons per hour, capable of completely unloading around five 60-ton freight wagons within one hour.

2. Adopts upper-lower double girder composite structure; the mobile tipping bucket assembly enables cross-line operation to serve multiple transport routes flexibly.

3. T-shaped chain bucket design supports both forward and reverse material digging, greatly boosting overall unloading efficiency and thoroughness.

4. Compact travel reducers deliver large output torque with small footprint and outstanding wear resistance for extended service life.

5. The belt conveyor blanking section is equipped with sealed telescopic slip tubes to effectively suppress dust diffusion during material transfer.

6. Complete suite of safety components including overload limiter, lifting height limit switch, trolley polyurethane buffers, travel stroke limiters and full mechanical safety guards for comprehensive operational protection.

Weihua’s full range of bulk material handling machinery includes both conveying equipment and port loading/unloading solutions, widely deployed across mining, coal mining, water conservancy & hydropower, transportation hubs, port terminals, petrochemical plants, cement factories, metallurgical workshops, thermal power stations, municipal infrastructure and construction aggregate yards. Gantry type and bridge type structural forms can be fully customized to match clients’ site conditions and process demands.

Weihua Crane supplies fully tailor-made Chain Bucket Unloader Crane packages dedicated to bulk cargo terminals, port yards and thermal power plants. Featuring super-large hourly throughput and stable automatic material excavation performance, these custom cranes deliver dependable continuous handling of coal, mineral ore and all granular bulk materials.

All core technical indicators including rated handling capacity, working span, vertical clearance and track gauge can be flexibly adjusted to fit diverse terminal layouts and strict bulk material unloading process standards, supporting consistent efficient and dust-controlled safe round-the-clock operation.

Optional Configurations

• Full-electric and hybrid trolley driving assemblies

• Unmanned full-automatic operation system with wireless remote control module

• Integrated anti-sway and high-precision positioning unit for stable bulk material excavation and transfer

• Energy-saving drive assemblies equipped with regenerative braking function

• Custom structural transformation to match dedicated runway layouts inside bulk cargo yards and power plant stockpiles
