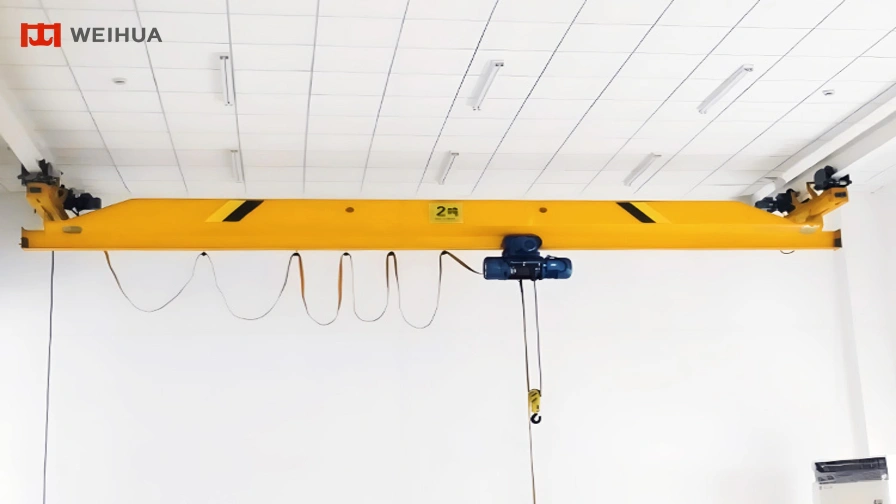

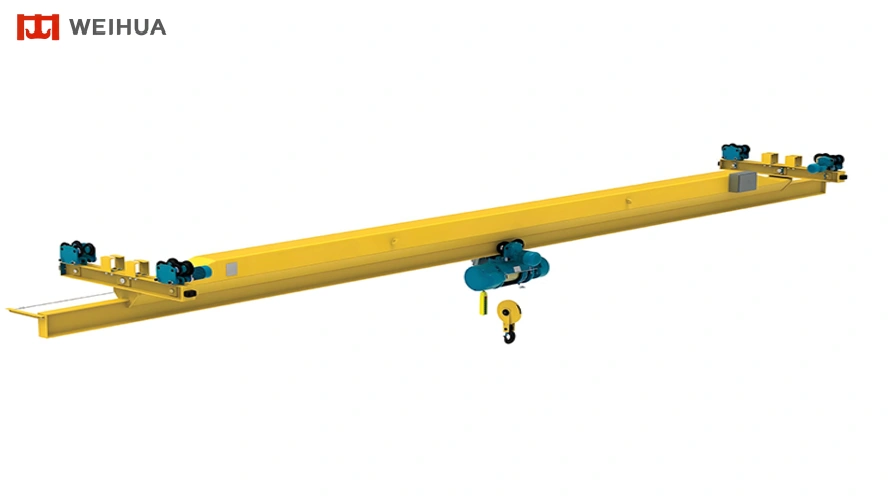

LX single girder suspension overhead cranes are light-duty overhead lifting equipment with a maximum rated capacity of 10 tons. Compared with conventional ground-supported overhead cranes, the ceiling-mounted track design delivers a larger effective working span and lighter overall dead weight. Matched with CD1 or MD1 wire rope electric hoists, the LX suspension crane boasts outstanding service durability.

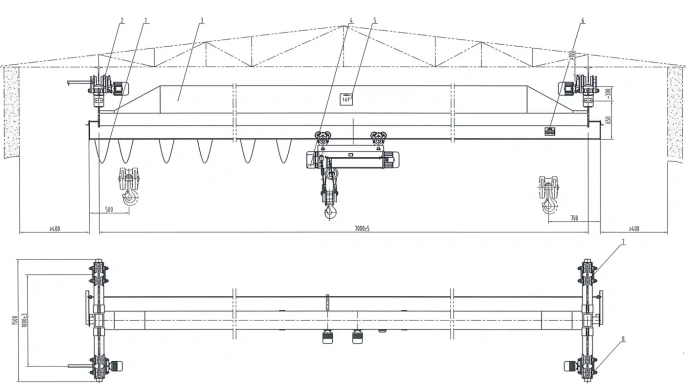

The supporting electric hoist is an integrated assembly including driving motor, reduction gearbox, wire rope drum and steel wire rope set. The suspension assembly acts as the critical connecting part between the main girder and factory roof brackets, normally composed of support arms, connection plates and high-strength fastening bolts. Adjustable suspension assemblies are available for customers to fine-tune the vertical height of the main girder according to actual installation space conditions.

The main girder combines I-beam and box beam composite structures to achieve long service life and stable load bearing, and is mounted to roof brackets via suspension fittings. Thanks to the top-hung installation method, this crane perfectly fits facilities with restricted vertical clearance, including small workshops and storage warehouses. The single girder layout greatly cuts total equipment weight and simplifies on-site installation and routine maintenance, making it the optimal lifting solution for low-headroom factories with light-load material handling demands.

1. Machinery Manufacturing
                  Used for component transfer and equipment assembly. It greatly boosts production efficiency and lowers physical labor intensity from manual carrying.

2. Warehousing & Logistics
                  Completes loading, unloading, stacking and goods transfer, especially ideal for handling small and light finished goods.

3. Food Processing Plants
                  Handles raw materials and packaged finished products. Pollution-free running and flexible operation fully comply with food-grade hygiene standards.

4. Assembly Shops & Laboratories
                  Supports high-precision material transportation and delicate component assembly, meeting strict refined operation requirements in precision production and experimental work.

Weihua Crane supplies fully tailor-made LX single girder suspension overhead crane packages dedicated to low-ceiling production workshops, storage warehouses and light industrial plants. Featuring flexible running performance and accurate load positioning, these cranes maintain stable performance for daily light-duty cargo lifting and stock management.

All core technical indicators including lifting capacity, working span, vertical lifting height and track layout can be flexibly modified to match various indoor factory layouts and light-load hoisting standards, supporting efficient, stable and secure daily material circulation operations.

Optional Configurations

• Full-electric and hybrid trolley driving assemblies

• Unmanned automatic operation system with wireless remote control module

• Integrated anti-sway and high-precision positioning unit for stable accurate cargo handling

• Energy-saving drive systems equipped with regenerative braking function

• Custom structural design to fit unique ceiling track layouts of different indoor workshops

Our professional R&D engineering team prioritizes space-saving design, easy maintenance and long operational lifespan, supplying compact advanced lifting solutions for modern light manufacturing workshops, logistics warehouses and small processing factories.
