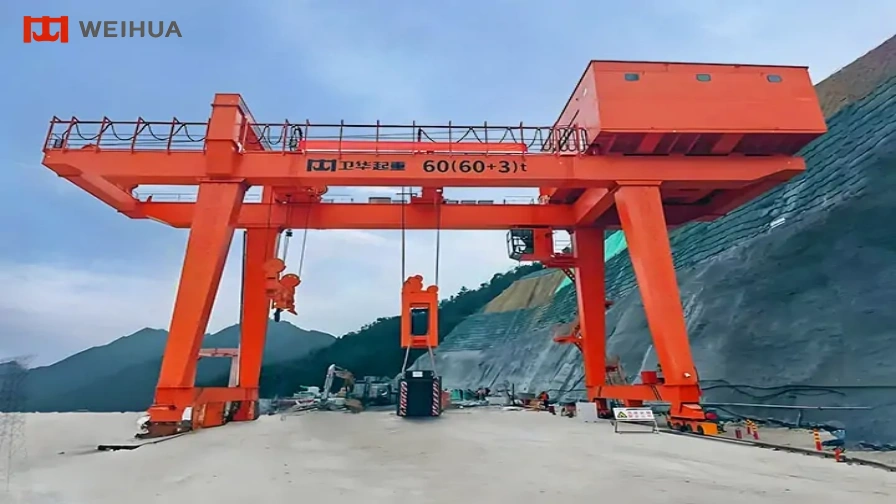

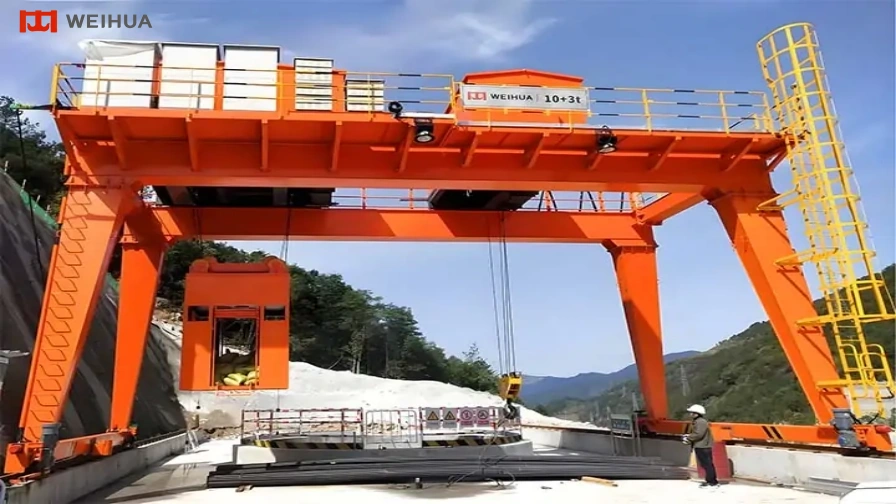

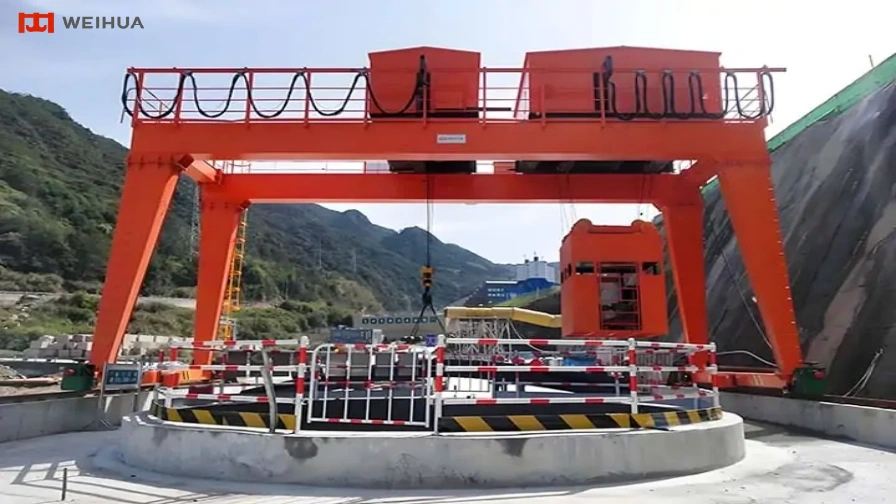

Developed based on double girder gantry crane fundamentals and optimized for vertical shaft operational characteristics, the mining vertical shaft gantry crane is a high-safety, reliable, intelligent and efficient lifting device. Featuring advanced automation and intelligent control capabilities, it adapts to diverse complex working conditions and supports both outdoor and underground cave installation.
The equipment supports flexible structural configurations, including portal, bridge and fixed bracket styles to fit on-site demands. It can be fitted with independent personnel and cargo lifting systems, which are capable of individual or collaborative operation within the shaft diameter range to meet diverse construction requirements.
This specialized gantry crane is extensively applied in various shaft projects of hydropower stations, covering cable shafts, high-pressure shafts, water outlet shafts and ventilation shafts. It undertakes full-process operations including shaft excavation, supporting construction, equipment hoisting, material delivery, subsequent equipment installation and on-site personnel transportation.
Serving the full construction cycle from shaft excavation to post-stage equipment installation, the crane covers multiple core working scenarios:
Personnel Transit: Realizes vertical transportation of construction workers inside vertical shafts.
Hydropower Project Construction: Performs excavation, supporting, equipment lifting and material handling for all types of hydropower shaft facilities.
Equipment Installation and Maintenance: Supports the hoisting, mounting and overhaul of various construction equipment, such as mini excavators, drilling rigs, shotcrete protection devices, slipform systems, BOX pipes and pressure steel pipes.
Material Conveyance: Completes vertical lifting and transportation of construction supplies including steel bars and barreled materials.
Variable Frequency Control: All operating mechanisms adopt variable frequency control, supporting indoor operation, platform operation and remote wireless control, perfectly adapting to deep shaft working environments.
Stable Operation & Precise Positioning: Delivers smooth operation and high-precision positioning, with micro-movement, inching and anti-sway functions. It supports synchronous operation of multiple mechanisms and lifting points.
High-Performance Winch Technology: Effectively eliminates wire rope twisting and hoist rotation issues during ultra-high lifting operations. Equipped with rope breakage and fall prevention devices to guarantee operational safety.
Redundant Safety Design: The personnel lifting mechanism adopts redundant safety configuration, with misoperation prevention and automatic zero-reset protection functions, realizing human-centric safety design.
Intelligent Management System: Comes with animation simulation, real-time load display and operational data recording functions, facilitating on-site monitoring and data analysis.
Weihua Crane provides tailor-made vertical shaft gantry crane solutions for mine construction, shaft excavation and underground mining projects. The customized equipment features strong lifting capacity and precise handling performance, ensuring reliable operation for mining equipment, shaft construction materials and heavy component management.
Core parameters including lifting capacity, span, lifting height and rail gauge can be adjusted freely to match different mine layouts and shaft construction standards, securing efficient and safe operation in harsh mining environments.
Optional Configurations
Electric and hybrid drive trolley systems
Automatic control and remote operation platforms
Professional anti-sway and positioning system for accurate mining equipment and material handling
Energy-saving drive units with regenerative braking performance
Custom structural design to adapt to unique track layouts of mines and vertical shaft construction sites
Our professional engineering team delivers high-efficiency, safe and long-term stable equipment solutions, providing advanced technical support for modern mine construction, shaft development and underground mining projects.
Technical Parameters
| No. | Project | Unit | Design value | Remarks |
|---|---|---|---|---|
| 1 | Rated lifting capacity | t | 60 | — |
| 2 | Span/Effective cantilever length (left)/ Effective cantilever length (right) | m | 18/—/4.5 | — |
| 3 | Lifting height / Lowering depth | m | 10/— | 650m rope capacity |
| 4 | Overall power | kW | 398.4 | — |
| 5 | Design weight | t | 230.37 | — |
| 6 | Working class of the whole machine | — | A5 | — |
| 7-11 | Lifting mechanism (main trolley) | — | main hoist | secondary lifting |
| Rated lifting capacity / t | 60 | — | ||
| Speed / m/min | 1.5~15 | — | ||
| Multiplier / — | 4/2 | — | ||
| Working class / — | M5 | — | ||
| 11 | Spreader type | — | Specialized slag discharge hook beam Spreader | — |
| 12-16 | Lifting mechanism (sub-trolley) | Rated lifting capacity / t | 3 (without cage) | — |
| Speed / m/min | 3~30 | — | ||
| Multiplier / — | 8/4 | — | ||
| Working class / — | M6 | — | ||
| Spreader type / — | Specialized cargo cages | — | ||
| 17-19 | Large Vehicle Operation Mechanism | Speed / m/min | 2~20 | — |
| Work Class / — | M5 | — | ||
| Wagon Rail / — | QU120 | — | ||
| 20-22 | Trolley Operation Mechanism | — | Main trolley | Sub trolley |
| Speed / m/min | 2~20 | 0~20 | ||
| Working level / — | M5 | M5 | ||
| 22 | Trolley track | mm | Square steel(80×60) | Square steel(80×60) |
