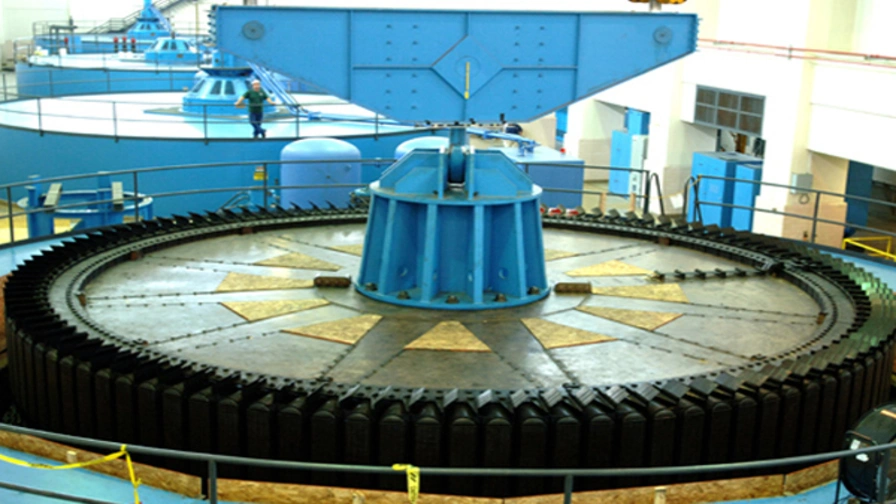

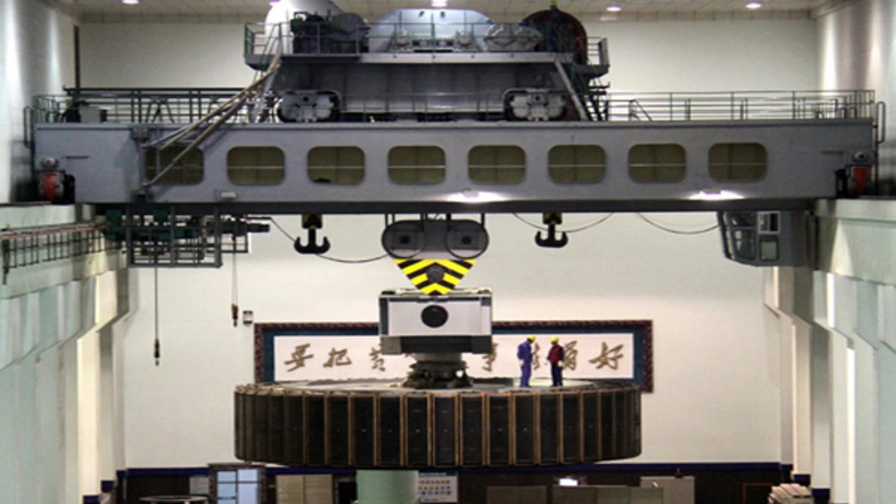

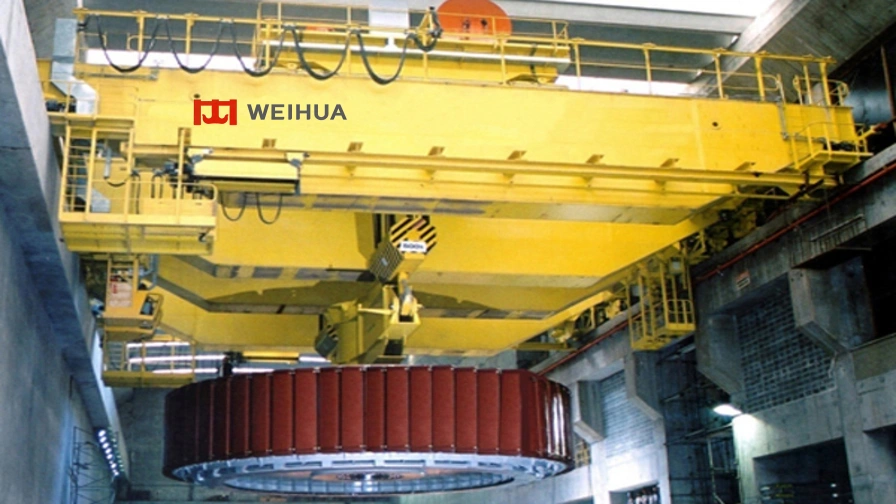

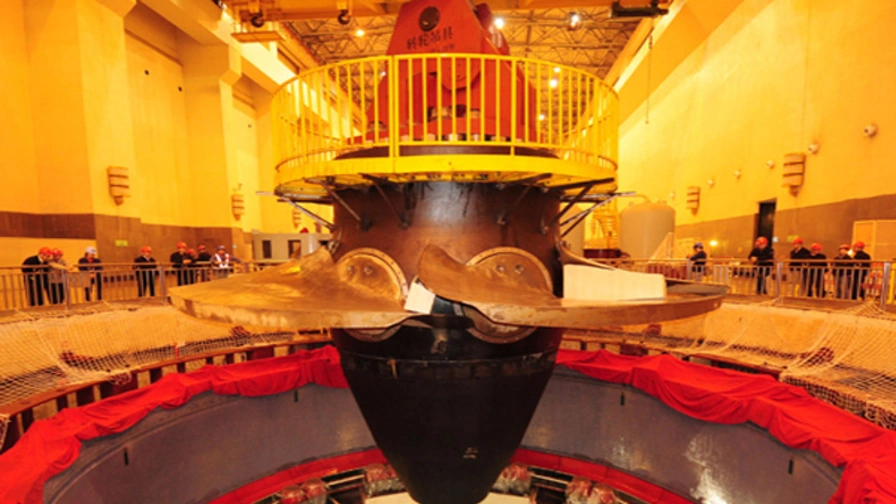

Power station dedicated overhead cranes are professional lifting equipment used for hoisting and assembling core power generation equipment including generator stators, steam turbine stators and rotors inside power plants. The crane series stands out with lightweight body design, low power consumption and minimal maintenance workload.
Weihua full-range overhead lifting equipment is extensively applied in mechanical manufacturing, metallurgical smelting, power generation, railway transport, port logistics, petroleum exploitation and chemical processing industries. Our special lifting cranes have supported numerous national key energy projects and large-scale industrial enterprise production bases.
-
Maximize effective workshop space
Compact lateral limiting dimensions expand the usable horizontal working range. The vertical clearance above runway rails is minimized to fully exploit the limited internal height of power plant buildings.
-
Low long-term operation & maintenance expenditure
Robust structural performance and outstanding wear resistance cut extra overhaul costs. Premium brand core components greatly reduce daily repair frequency, paired with overall low energy consumption to lower running expenses.
-
Superior handling performance
Variable frequency drive technology lightens mechanical operating load and supports fast travel speed under light working loads. A wide 1:10 speed ratio delivers shock-free smooth movement and avoids structural impact to factory buildings. Built-in anti-sway algorithm achieves millimeter-level accurate positioning during precision equipment assembly.
Weihua Crane supplies fully tailor-made overhead crane packages exclusively developed for thermal power plants, hydropower stations and all power engineering construction sites. Featuring heavy load capacity and ultra-precise load manipulation, these custom cranes deliver stable reliable performance for transporting and installing large power generation units and heavy precision components.
All core technical indicators including lifting tonnage, working span, vertical lifting height and track width can be flexibly adjusted to fit diverse power plant building layouts and strict precision lifting standards for power equipment, supporting efficient and secure continuous heavy-duty operation.
Optional Configurations
Full-electric and hybrid trolley driving assemblies
Intelligent full-automatic operation system plus wireless remote control module
Special anti-sway and high-precision positioning unit for stable precision power equipment assembly
Energy-saving driving assemblies equipped with regenerative braking function
Custom structural optimization to match unique runway layouts inside turbine halls and power workshops
Our professional R&D engineering team prioritizes high assembly efficiency, comprehensive multi-layer safety protection and extended equipment service lifespan, supplying state-of-the-art precision lifting solutions for modern thermal power plants, hydropower stations and all power industry manufacturing & maintenance workshops.
| Item | Unit | 80/20 | 100/20 | ||
|---|---|---|---|---|---|
| Lifting Capacity | t | Main Hook | 80 | Main Hook | 100 |
| Vice Hook | 20 | Vice Hook | 20 | ||
| Lifting Height | m | Main Hook | 28 | Main Hook | 24 |
| Vice Hook | 30 | Vice Hook | 30 | ||
| Span | m | 10.5~31.5 | 10.5~31.5 | ||
| Hoist Lifting Speed | m/min | main Hook | 0.15~1.5 | main Hook | 0.15~1.5 |
| Vice Hook | 0.63~6.3 | Vice Hook | 0.63~6.3 | ||
| Traveling Speed | m/min | Crane | 1.5~15 | Crane | 1.5~15 |
| Trolley | 3~30 | Trolley | 2~30 | ||
| Max Wheel Load | KN | 231~296 | 286~349 | ||
| Work Duty | — | A3 | A3 | ||
