Developed for container handling scenarios, the Weihua Rail Mounted Gantry Crane (RMG) is widely applicable to inland container terminals, storage yards, railway freight stations, coastal cargo yards and border docks. Adopting full-digital AC variable frequency drive, PLC control and intelligent condition monitoring (CMS) core technologies, the equipment achieves efficient, accurate and safe cargo handling.

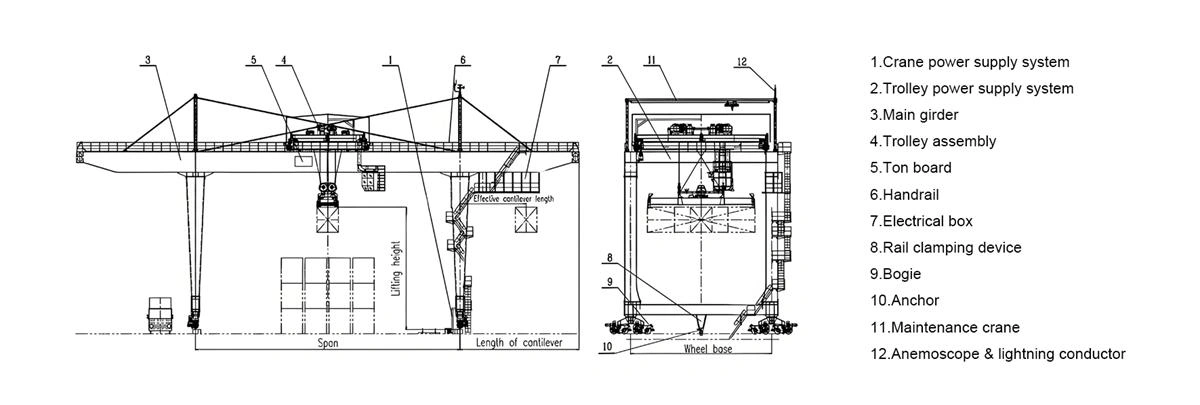

Structure and Components
This RMG crane is mainly composed of steel frame structure, lifting unit, micro transfer mechanism, spreader anti-sway system, crane travelling device, container spreader, electric control system and auxiliary supporting parts. It is equipped with variable frequency and PLC control system as well as CMMS fault diagnosis system, fully conforming to GB/T19683-2005, JT/T566-2004, ISO, FEM, JIS and other domestic and international industry standards.
Types & Mechanisms

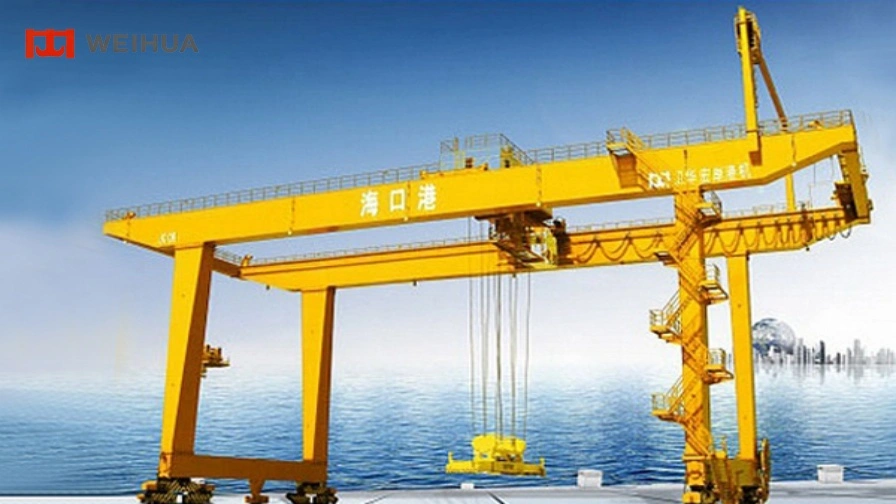

Double Cantilever Gantry Crane: Features a wide clearance between support legs for container passage. The overall structure adopts a U-shaped leg design matched with an N-shaped main girder.

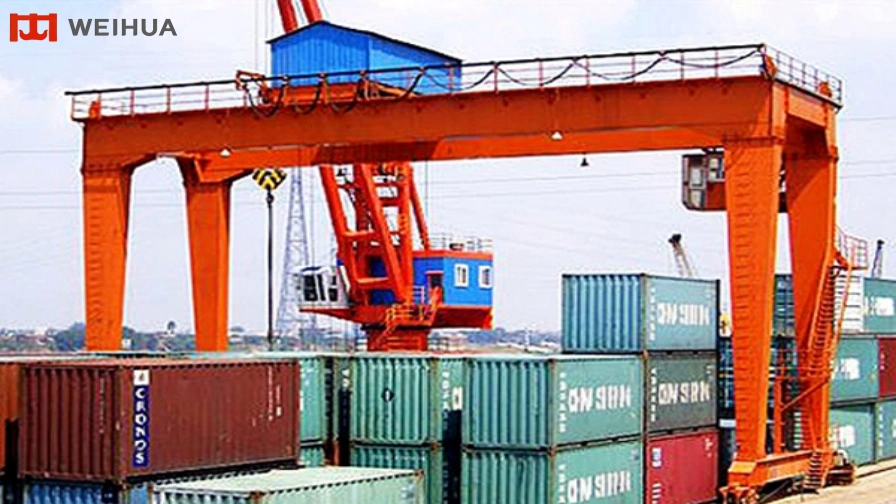

Non-Cantilever Crane: Boasts a simple structural layout, with no container passage required between the outriggers.
Stabilization Performance: Rope-type structures are equipped with damping devices, while rigid-type structures rely on self-structural rigidity. Optional anti-sway devices effectively optimize operating stress and improve working efficiency.
Drive & Safety System: Longitudinal and transverse travelling adopt integrated three-in-one gear motors. The trolley supports 270° rotation, and the crane is fitted with shaft breakage prevention, wind speed alarm, anti-overturning and multiple other safety protection devices.

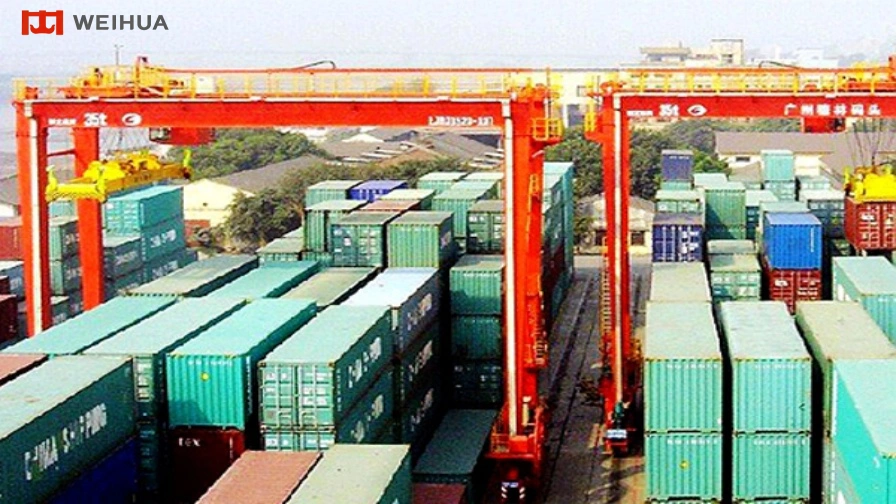

Container stacking and transportation for inland terminals and container yards.
Standard container handling operations at railway freight stations and coastal cargo yards.
Supports flexible lifting of 20ft, 40ft and 45ft standard containers via dedicated spreaders.
Suitable for high-efficiency material handling in petrochemical, logistics and industrial fields.

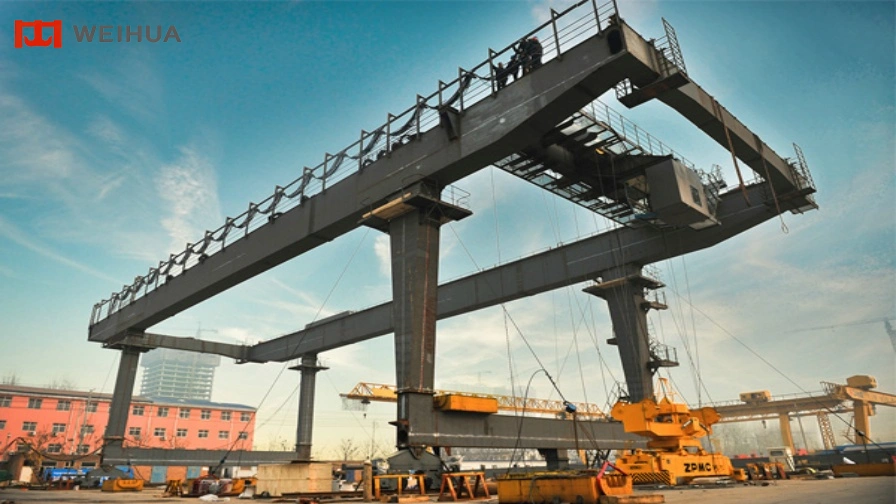

The double-cantilever U-type rod frame realizes high structural strength with light self-weight.
Large gantry span and overall width reserve ample space for container loading and unloading work.
360° rotatable container spreader delivers strong site adaptability and high operating efficiency.
Optimized long-travel assembly ensures smooth and stable travelling performance.
Integrated and optimized gantry frame and trolley assembly structure.
Adopts full digital variable frequency and PLC intelligent control technology.
Equipped with high-precision sensor acquisition and industrial computer data analysis system.
The electric control system is coupled with CMS to realize real-time intelligent operation monitoring.
Weihua provides tailor-made Rail Mounted Gantry Crane solutions for port and yard operation scenarios. The equipment features high lifting capacity and precise handling performance to support stable and reliable container management.
Core indicators including lifting capacity, span, lifting height and rail gauge can be adjusted flexibly to adapt to different terminal layouts and container handling demands, ensuring safe and efficient field operation.
Optional Configurations
Electric or hybrid drive trolley solutions
Automatic control and remote operation systems
Professional anti-sway and positioning system for high-precision container handling
Energy-efficient drive units and regenerative braking system
Custom structural design to fit exclusive yard rail layouts
Technical Parameters
| Model | LJ35/40-23 | Light Type LJ40-23 |
|---|---|---|
| Lifting capacity (without spreader)(t) | 35,40 | 40 |
| Work level | A7,A8 | A6,A7 |
| Span(m) | 23,47 | 23,47 |
| Lifting Height (m) | 12.2~17.8 | 16.5 |
| Stack layer | 3/4~5/6 | 5/6 |
| Container size | 20',40',45' | 20',40',45' |
| Spreader rotation angle | ±5° | ±5° |
| Lifting (m/min) | 13/26,23/52 | 12/18,18/28 |
| Trolley travelling (m/min) | 50,70 | 24 |
| Crane travelling (m/min) | Full load-90, no load-130 |
Full load-20, no load-40 |
| Max. wheel load(kN) | 310 | 310 |
