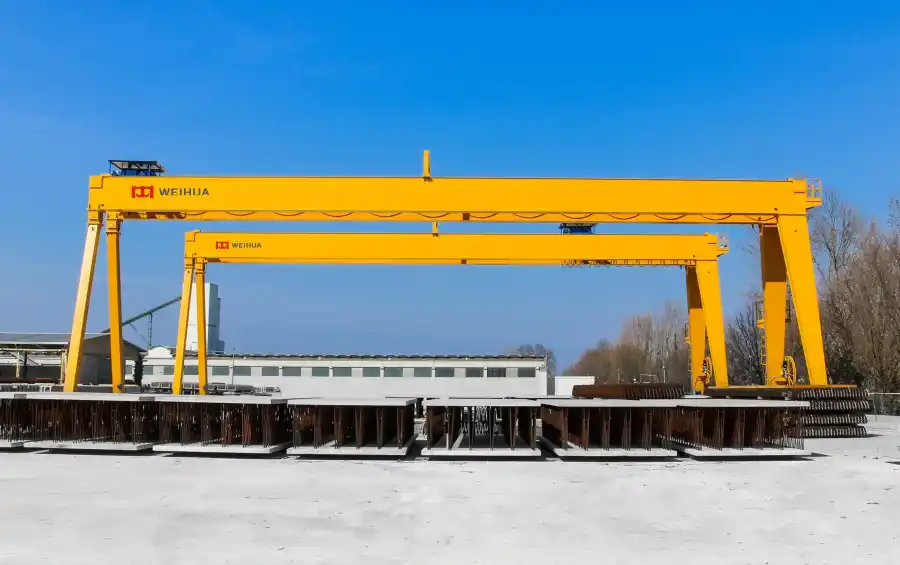

What Is a Heavy Duty Outdoor Gantry Crane?
A heavy duty outdoor gantry crane is a large-scale lifting equipment designed for handling heavy materials in open-air working environments. Unlike indoor overhead cranes that depend on building structures, outdoor gantry cranes have independent supporting legs and operate on ground rails, making them suitable for large outdoor working areas.
With a strong structural design and high load capacity, heavy duty outdoor gantry cranes are widely used in industries where large and heavy materials need to be lifted, moved, and positioned safely and efficiently.
A typical heavy duty outdoor gantry crane consists of:
✔-Main girder
✔-Supporting legs
✔-Hoisting trolley
✔-End trucks and travel mechanism
✔-Electrical control system
During operation, the hoisting trolley moves along the main girder to lift materials, while the entire crane travels along the rails to cover the required working area.
Compared with standard gantry cranes, heavy duty outdoor gantry cranes are designed for higher lifting capacity, longer service life, and more demanding working conditions.
Features of Heavy Duty Outdoor Gantry Crane
The main difference between heavy duty outdoor gantry cranes and standard cranes is their ability to handle large loads and operate reliably in challenging outdoor environments.
A heavy duty outdoor gantry crane usually adopts a reinforced steel structure and optimized mechanical components to ensure stable operation under heavy working conditions.
Key design features include:
Strong Structural Design
The crane structure is designed according to lifting capacity, span, and working duty.
The reinforced main girder, legs, and traveling system provide:
-High load-bearing capability
-Better structural stability
-Reliable operation for long-term use
This makes the crane suitable for industries requiring frequent lifting of heavy materials.
Outdoor Environmental Protection
Since the crane operates outdoors, special consideration must be given to weather and environmental conditions.
The design may include:
-Anti-corrosion treatment
-Weather-resistant electrical components
-Protection against rain and dust
-Wind-resistant design
These features help ensure safe operation in different outdoor environments.
Efficient Heavy Material Handling
Heavy duty outdoor gantry cranes are equipped with powerful hoisting systems and reliable traveling mechanisms to handle large components efficiently.
They are suitable for applications requiring:
-Large lifting capacity
-Long travel distance
-Frequent operation
-Precise material positioning
Applications of Heavy Duty Outdoor Gantry Crane
Heavy duty outdoor gantry cranes are commonly used in industries where large materials must be handled in open areas.
Steel and Metal Processing
In steel yards and metal industries, these cranes are used for handling:
-Steel plates
-Steel structures
-Heavy components
-Fabricated products
They improve loading, unloading, and storage efficiency.
Ports and Shipyards
Heavy duty outdoor gantry cranes play an important role in ports and shipyards for lifting:
-Ship components
-Large machinery
-Marine equipment
Their large working range and high capacity make them suitable for heavy industrial operations.

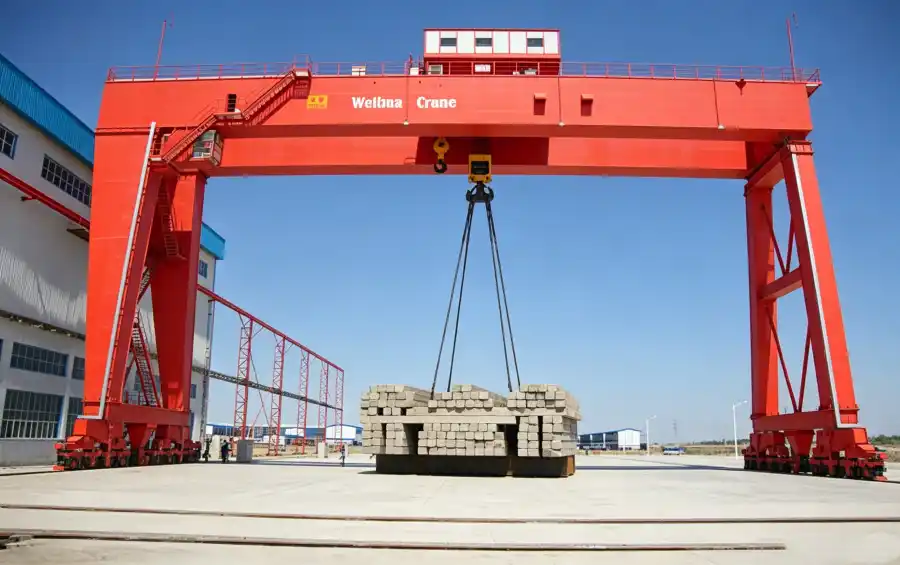

Precast Concrete Plants
In precast concrete production, they are used for moving:
-Concrete beams
-Large precast elements
-Construction components
Heavy Manufacturing Facilities
For industries producing large equipment, these cranes provide reliable lifting support for:
-Machinery parts
-Production equipment
-Heavy assemblies
How to Choose the Right Heavy Duty Outdoor Gantry Crane?
Choosing the right crane requires considering the actual working conditions and project requirements.
The most important factors include:
Lifting Capacity
Determine the maximum weight of materials to be handled and consider future expansion requirements.
Span and Travel Distance
The crane dimensions should match the working area, including:
-Distance between rails
-Crane travel length
-Required coverage area
Lifting Height
The required hook height should be considered according to:
-Material size
-Storage height
-Operation requirements
Working Duty
The crane configuration depends on operation frequency. A crane used continuously every day requires a stronger design than one used occasionally.
Outdoor Conditions
Environmental factors should be considered, including:
-Wind conditions
-Temperature
-Humidity
-Corrosion risk
A professional crane manufacturer can provide a customized solution based on the actual application instead of using a standard configuration.
FAQ About Heavy Duty Outdoor Gantry Crane
What is a heavy duty outdoor gantry crane?
A heavy duty outdoor gantry crane is a large lifting crane designed for handling heavy materials in outdoor environments. It features a strong structure, high lifting capacity, and independent supporting legs.
Where are heavy duty outdoor gantry cranes used?
They are widely used in steel plants, ports, shipyards, precast concrete factories, construction sites, and heavy manufacturing industries.
Can a gantry crane be used outdoors?
Yes. Gantry cranes are commonly used outdoors because they have their own supporting structure and can operate independently on ground rails.
What is the difference between a heavy duty gantry crane and a standard gantry crane?
The main difference is the working capability. Heavy duty gantry cranes are designed for higher loads, longer operation periods, and more demanding environments.
What information is needed to select a heavy duty outdoor gantry crane?
The main information includes:
✔-Lifting capacity
✔-Span
✔-Lifting height
✔-Travel length
✔-Working duty
✔-Application environment
✔-Power supply
