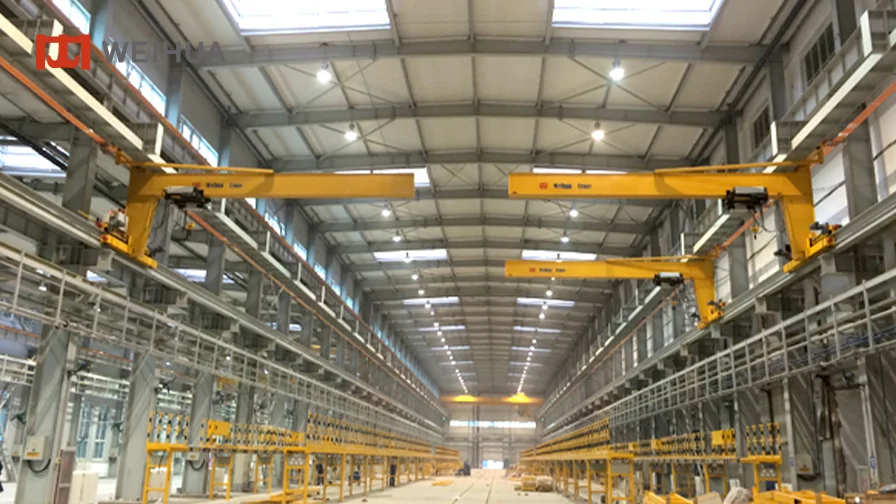

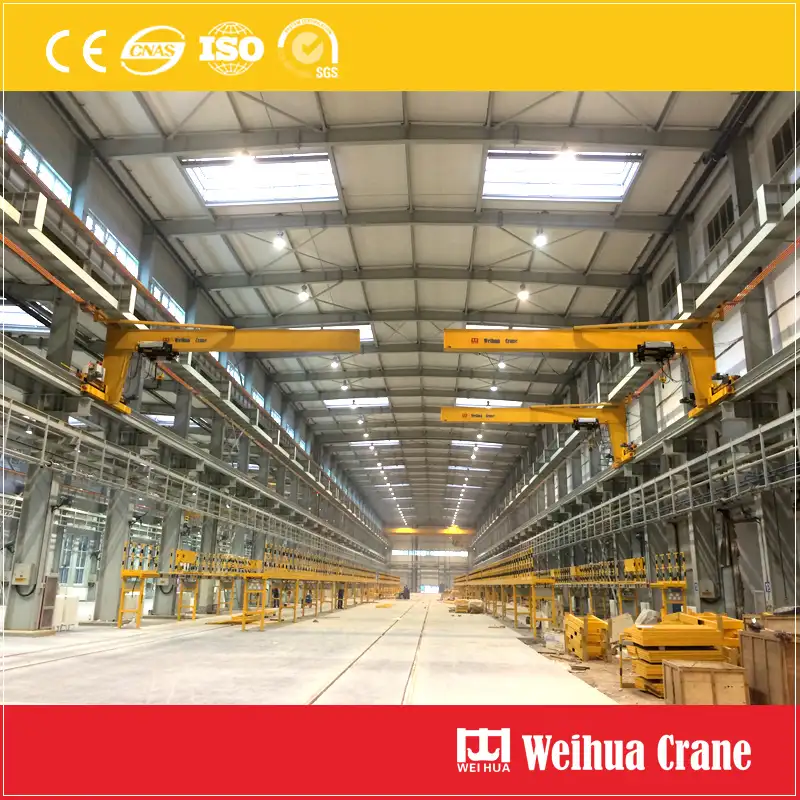

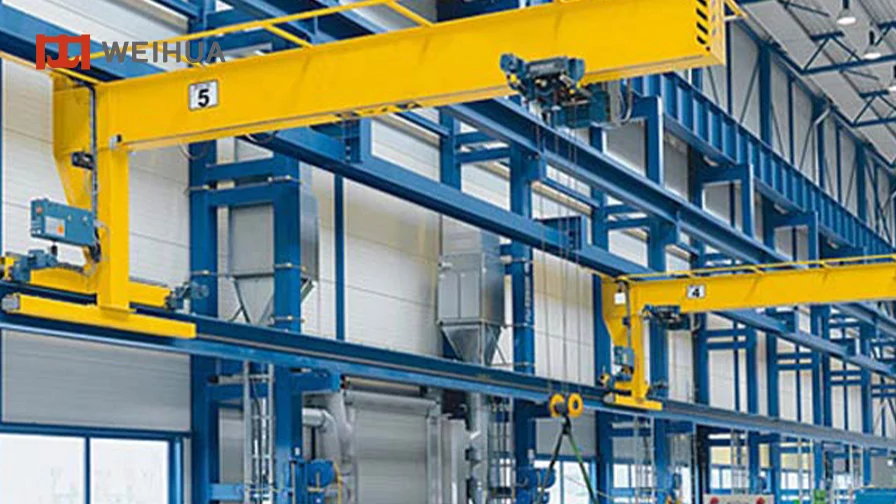

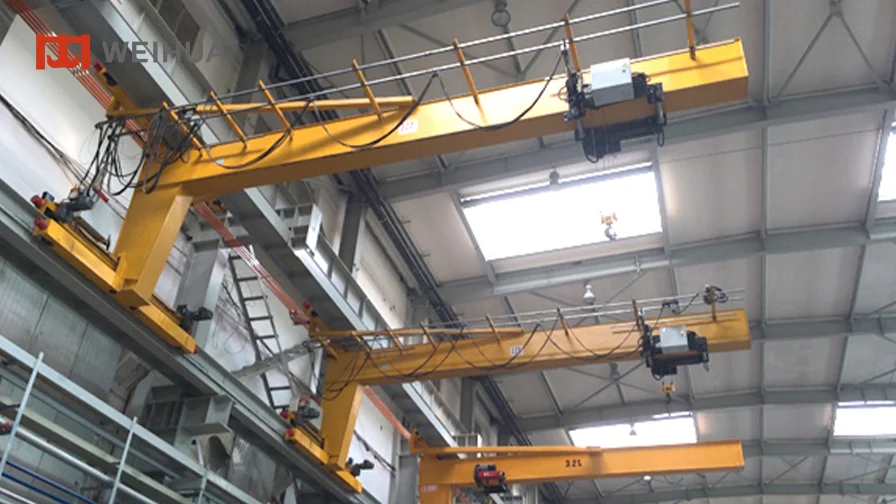

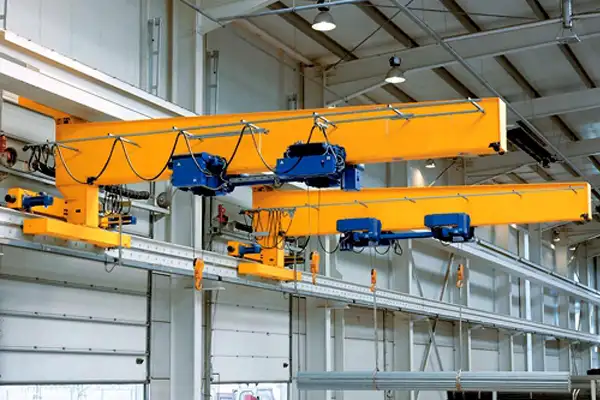

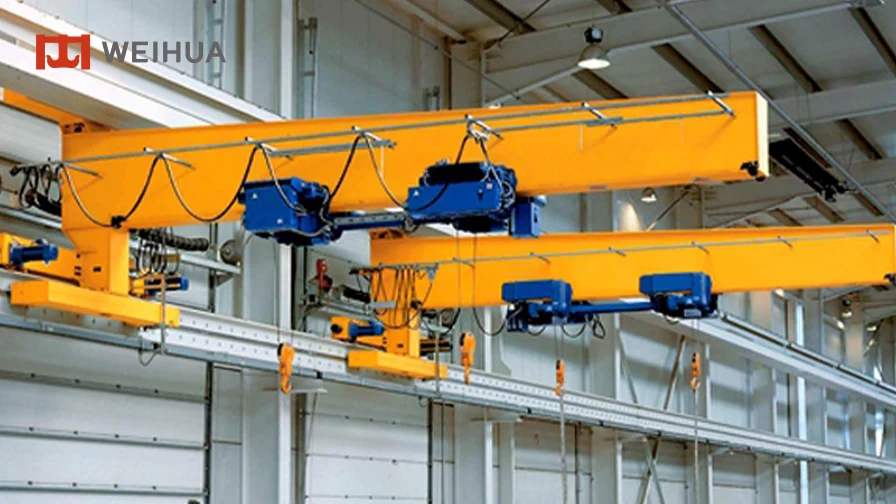

wall-mounted tracks. Its dedicated running rails are securely mounted on workshop concrete support columns or building steel beams, enabling the whole jib unit to travel back and forth along the wall. Meanwhile, the matched electric hoist can traverse horizontally along the jib beam and complete vertical lifting and lowering workpieces.

This wall rail travelling design greatly expands the effective working radius and maximizes utilization of vertical workshop space. It fits a wide range of lifting scenarios, including loading and unloading tasks in factories, mining workshops, automated production & assembly lines, machine tool stations, indoor warehouses and small dock yards.

Wall-traveling jib cranes are ideal for large-span, high-ceiling workshops and warehouses with frequent wall-side lifting work. They are often used as a supplementary lifting device paired with overhead bridge cranes. Bridge cranes take charge of transporting oversized and heavy bulk goods, while this wall travelling jib crane undertakes frequent handling of small and light workpieces near wall areas to optimize overall workshop operation efficiency.

Core Technical Specifications
           1. Power Supply: 3-phase AC 380V, rated frequency 50Hz
           2. Ambient Working Condition: Operating temperature ranging from -20℃ to +45℃; maximum relative humidity ≤85%
           3. Working Duty Class: A3 ~ A5 light & medium cyclic duty

Mechanical assembly workshops, automated production lines, wall-side machining stations, component storage areas and other light-duty centralized lifting zones.

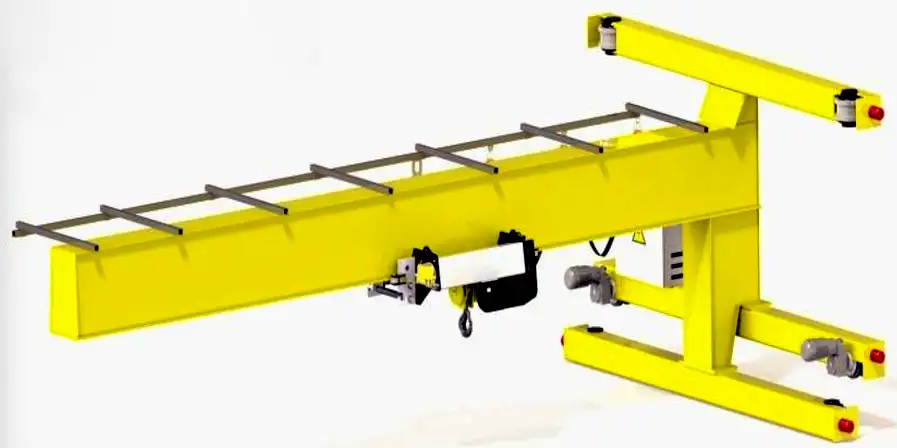

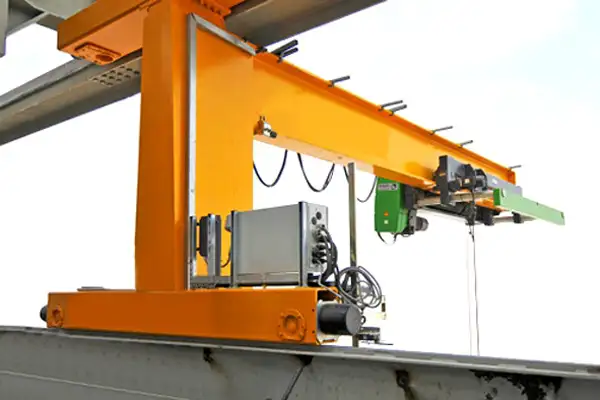

The crane travels smoothly on wall-mounted fixed rails with an exclusive compact structural layout. It delivers outstanding flexible movement and fully saves valuable ground space without occupying floor area.

Weihua Crane provides fully personalized wall-traveling jib crane solutions for wall-side intensive material handling, combining flexible longitudinal travelling and cantilever slewing advantages to expand coverage and space utilization.

Key parameters including rated lifting capacity, jib arm length, lifting height and rail travelling length can be flexibly tailored according to building structures and actual workshop lifting demands, perfectly matching frequent light-duty wall-side handling work.

Optional Configurations
           - Wire rope / electric chain hoist trolley matching choices
           - Dual control modes: wireless remote control or wired pendant handle
           - Variable frequency driving system for shock-free, precise movement
           - Built-in anti-sway protection devices to stabilize suspended loads
           - Customized reinforced wall rail brackets for high-span and high-ceiling buildings

Our professional engineering team optimizes each unit for smooth travelling, stable lifting performance and long service life, delivering cost-effective wall-side lifting solutions for modern assembly workshops, production lines and storage facilities.
