BX wall fixed jib crane belongs to light and medium-duty lifting machinery. Featuring distinctive structural design, stable and safe operation, energy efficiency and flexible maneuverability, it drastically cuts labor and time costs during handling. The equipment supports three-dimensional material transfer and becomes an ideal lifting solution for scenarios requiring short-distance and centralized hoisting workstations.

Detailed Structure & Basic Specifications

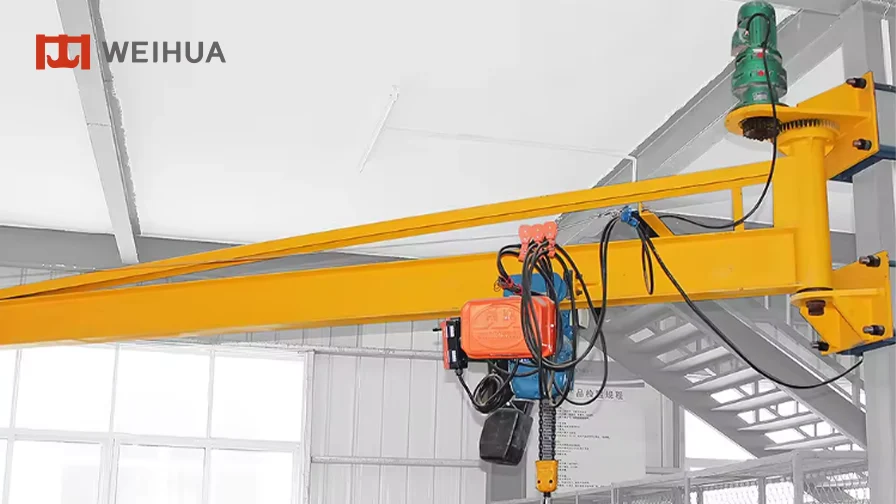

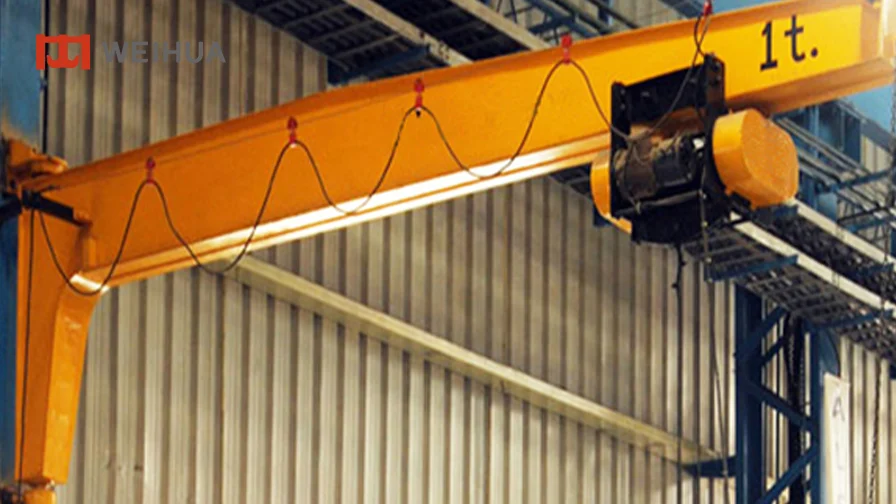

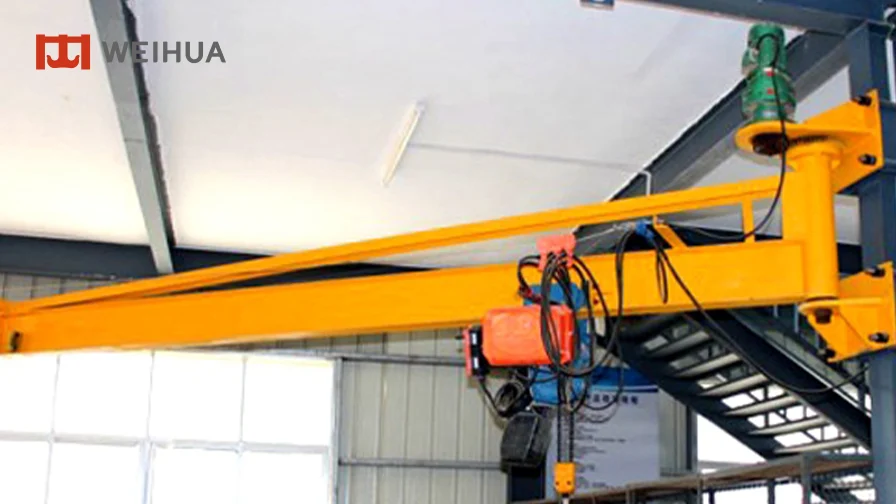

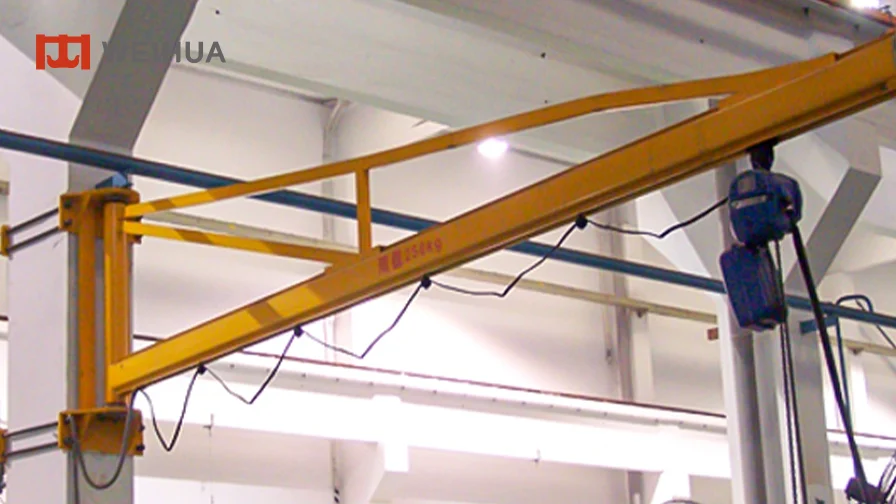

           The wall-mounted jib crane is assembled by wall brackets, rotary jib beam and matched electric hoist. The cantilever bracket is firmly mounted on solid walls, concrete pillars or steel support frames, and the jib arm supports flexible slewing with two drive choices: manual rotation and motorized electric rotation. Wire rope electric hoists or electric chain hoists can be fitted on the jib track to complete vertical lifting workpieces.

           Standard power supply: 3-phase AC 380V / 50Hz
           Applicable site altitude: below 2000 meters above sea level

Usage Restrictions:
           - Not allowed to operate in environments filled with flammable, explosive or corrosive gas
           - Forbidden to lift toxic, combustible and explosive hazardous materials

Working Principle & Operation Mode
           The hoist trolley travels along the bottom track of the jib arm to finish material lifting and landing. A dedicated slewing reducer drives the entire cantilever to rotate freely, with the electric control cabinet integrated onto the hoist unit for easy access.

           The crane adopts wired push-button pendant control equipped with 8 functional buttons, which independently control fast lift, fast lower, slow lift, slow lower, left & right jib slewing and horizontal trolley traversal.

Safety Operation Notes
           1. Never press fast and slow speed buttons, or forward and reverse rotation buttons of the same motor simultaneously during operation.
           2. All personnel are prohibited from standing or passing underneath the jib arm while the crane is running.
           3. Overload lifting beyond the rated capacity is strictly banned to eliminate equipment failure risks.

Core Features
           This wall-mounted jib crane boasts streamlined, compact and rational construction, lightweight body, easy operation and ultra-flexible slewing performance. It delivers energy-saving and high-efficiency handling performance without occupying valuable ground space.

Widely applicable scenarios:
           factory processing workshops, mining plants, automated production and assembly lines, machine tool stations, indoor warehouses and small dock cargo yards for daily loading, unloading and material transshipment tasks.

Weihua Crane supplies fully tailor-made BX wall fixed jib crane solutions targeted at localized workstation material handling. The wall-mounted installation mode saves maximum floor space while retaining flexible multi-directional operation for all kinds of production zones.

Core parameters including lifting capacity, jib arm length, lifting height and slewing angle can be adjusted freely to fit various wall bearing structures and workstation layouts, greatly boosting overall workshop handling efficiency.

Optional Configurations
           - Electric chain hoist or wire rope hoist matching options
           - Manual rotation or motorized electric slewing system
           - Dual control modes: wireless remote control or wired pendant handle
           - Custom limited slewing angles to match different operation zones
           - Reinforced wall-mounted bracket design for sites with limited ground area

Our professional engineering team optimizes each unit for space-saving installation, smooth flexible movement and long-term stable performance, delivering cost-effective lifting solutions for general workshops, storage warehouses, assembly production lines and equipment maintenance stations.
