The free-standing jib crane, also referred to as floor jib crane, fixed pillar jib crane or column cantilever crane, belongs to light-duty lifting machinery optimized for modern industrial production. Our BZD series free-standing jib crane is manufactured in full compliance with German design standards.
This jib crane boasts an innovative, rational and streamlined structural layout, paired with intuitive operation, flexible slewing performance and wide working coverage. Featuring energy-saving and high-efficiency characteristics, it is extensively deployed for workpiece and material hoisting tasks on factory production lines, assembly stations, machine tool processing areas, mine workshops, warehouses and dock yards.

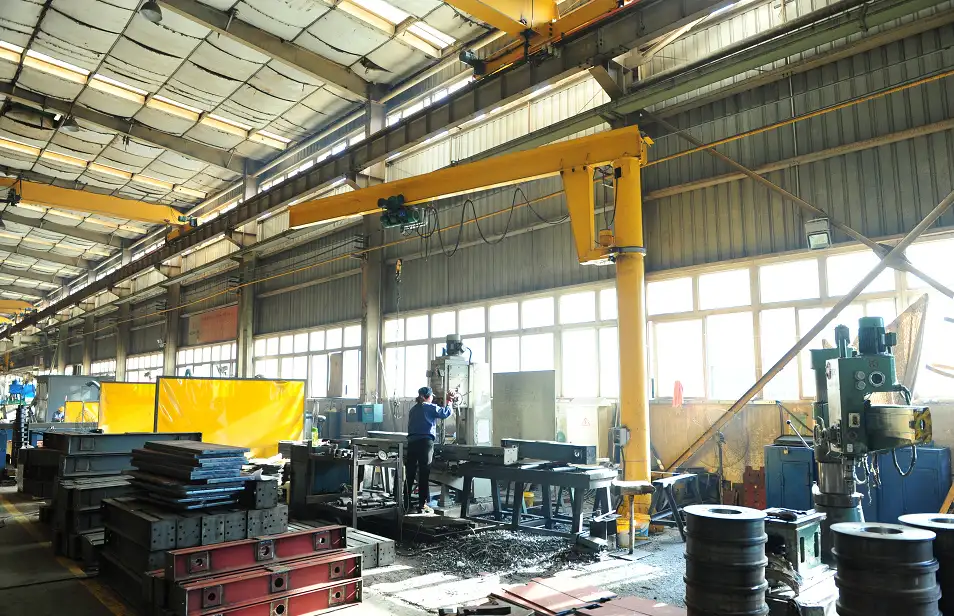

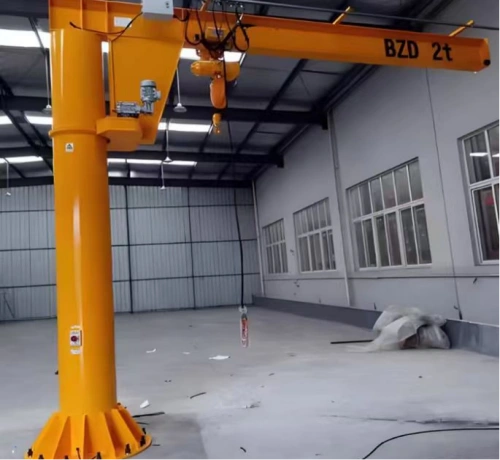

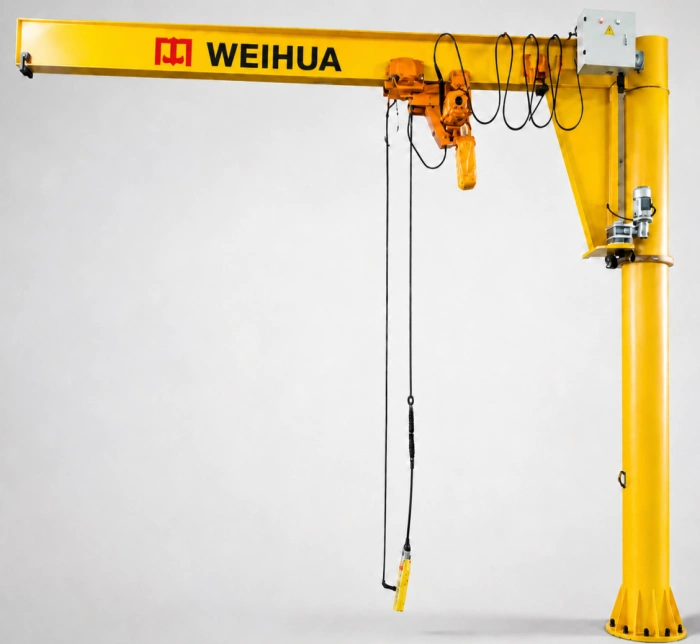

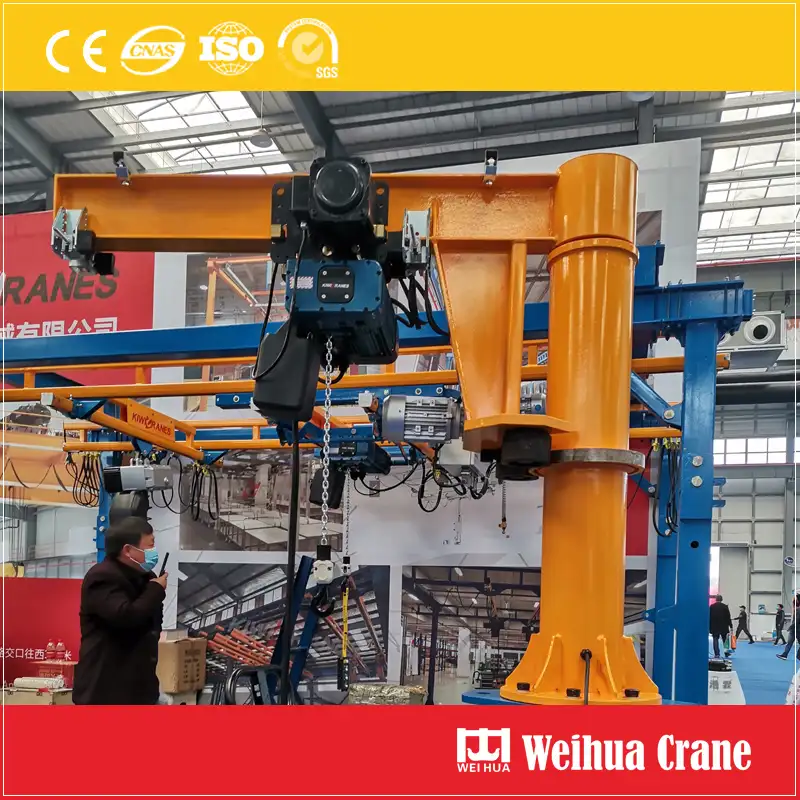

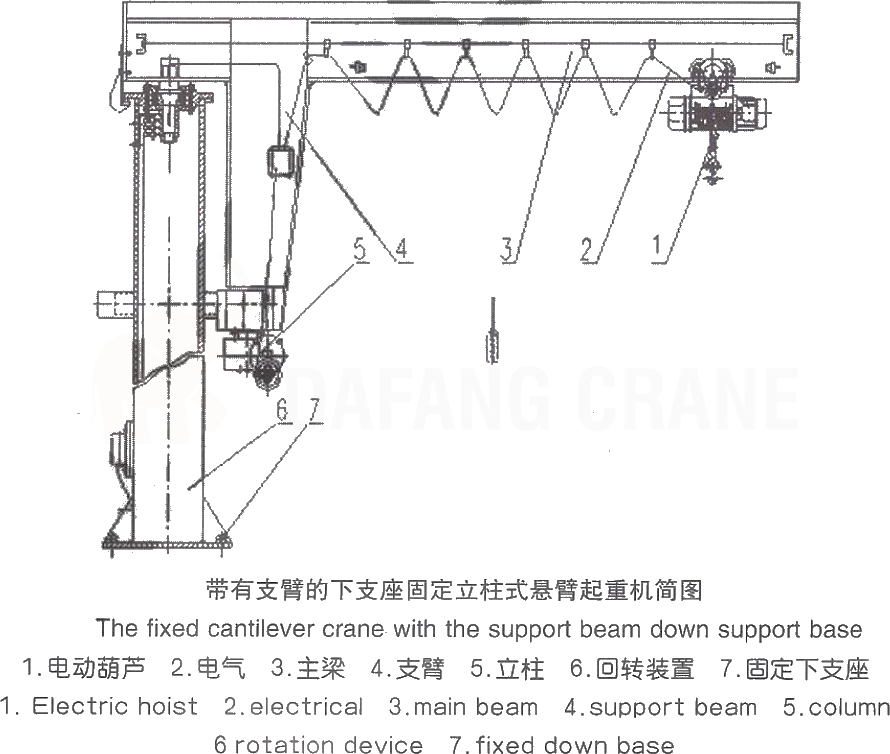

The whole set consists of vertical support pillar, slewing mechanism, jib beam and matched electric hoist. The base of the pillar is firmly anchored onto concrete ground foundations, while the jib arm supports adjustable slewing movement with two optional drive modes: manual rotation and electric motorized rotation. Users can fit electric chain hoists or wire rope hoists onto the jib track to complete vertical cargo lifting work.

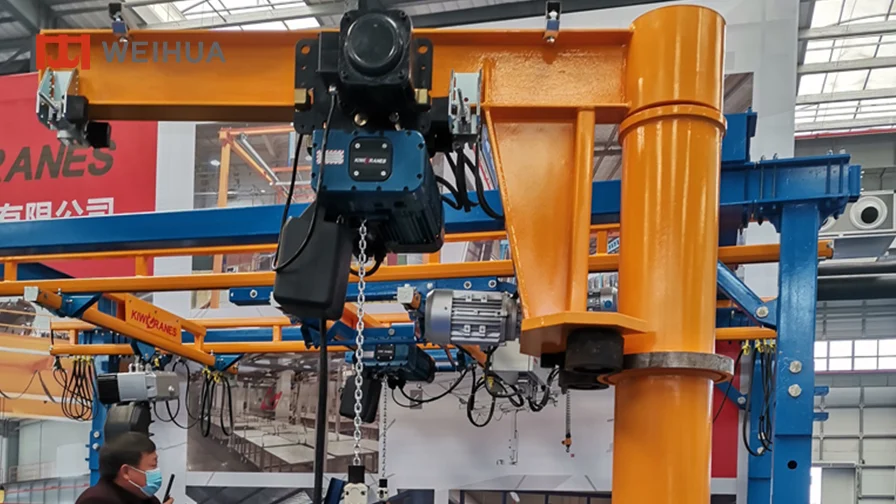

The hoist trolley travels along the underside of the jib beam, and the slewing gearbox drives the whole cantilever to rotate freely. An integrated electrical control cabinet is mounted directly on the hoist unit for convenient centralized operation.
Two control modes are available for daily operation: wired pendant push-button handle and wireless remote controller. The standard 8-button pendant covers all core movements: fast lifting, fast lowering, slow lifting, slow lowering, left & right jib rotation, as well as horizontal trolley traversal.
Operation Safety Guidelines
1. Do not activate fast and slow speed buttons or forward/reverse rotation buttons of the same motor simultaneously during running.
2. Strictly prohibit personnel staying or passing beneath the jib arm while the crane is in operation.
3. Overload lifting beyond the rated load capacity is completely forbidden to avoid safety hazards.
4. The crane adopts split disassembled packaging to cut down transportation costs and space. Customers can finish installation independently by following the detailed official operation manual.

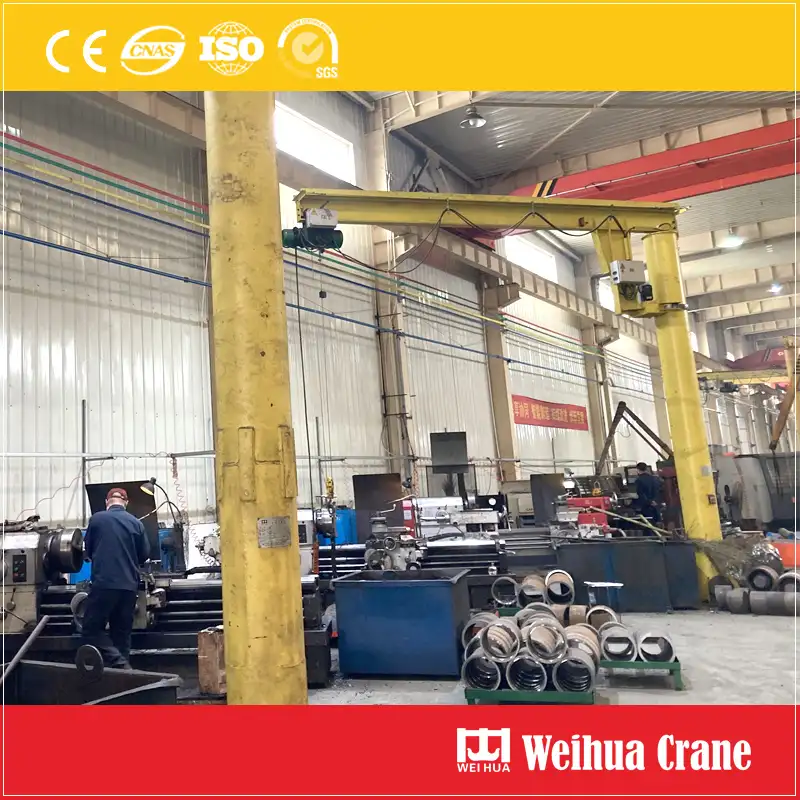

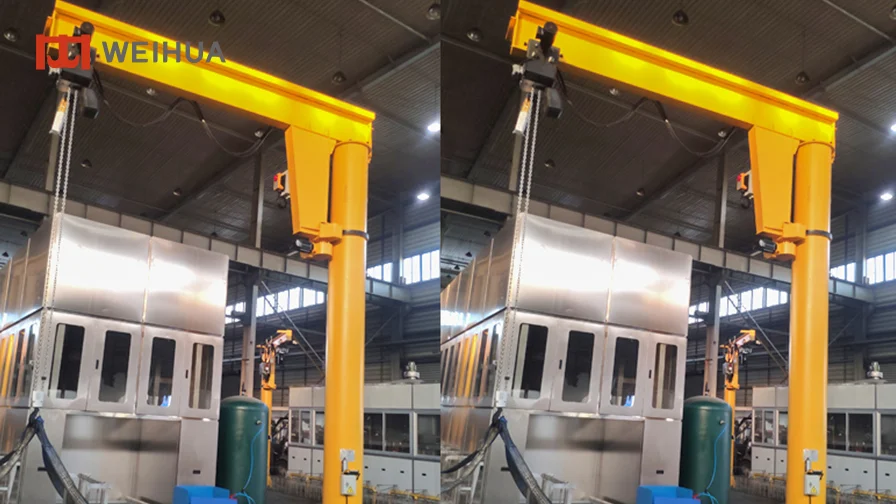

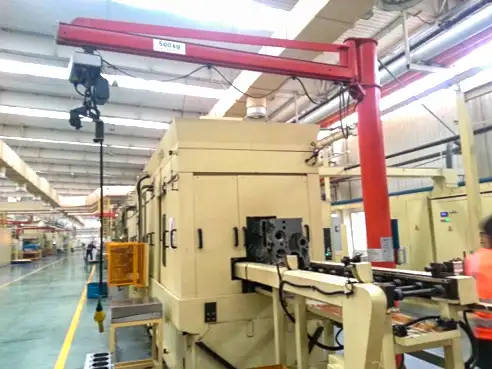

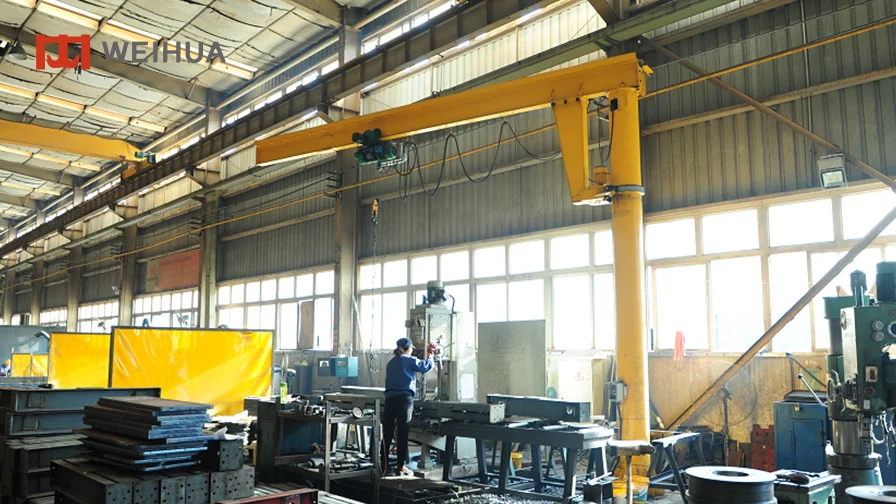

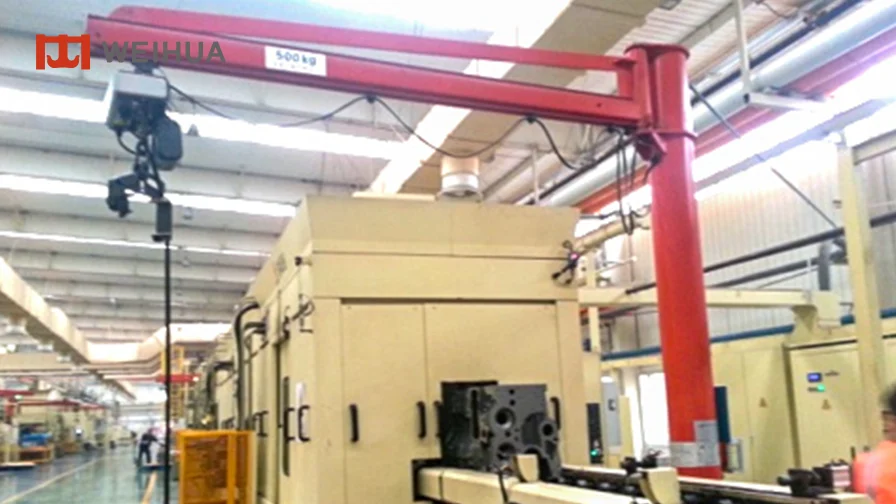

Weihua Crane delivers fully tailor-made free-standing jib crane solutions dedicated to independent workstation material handling. Each customized unit features flexible slewing capability, high working efficiency and steady mechanical performance to satisfy diverse industrial lifting demands.
Core specifications including lifting tonnage, jib arm length, lifting height and slewing angle are all adjustable on demand to match various site conditions, perfectly fitting assembly lines, storage warehouses and equipment maintenance workshops.
Optional Configurations
- Optional electric chain hoist or wire rope electric hoist
- Two slewing types: manual rotation and motorized electric rotation system
- Dual control solutions: wireless remote control or wired pendant handle
- 360° full-range slewing or custom limited rotation angle
- Reinforced heavy-duty base foundation design for enhanced overall stability
| Model | BZD0.125 | BZD0.25 | BZD0.5 | BZD1 | BZD2 | BZD3 | BZD5 | |
|---|---|---|---|---|---|---|---|---|
| Capacity | 0.125t | 0.25t | 0.5t | 1t | 2t | 3t | 5t | |
| Lift Height | 3m | 3m | 3m | 3m | 3m | 3m | 3m | |
| Rotation Radius | 3m / 4m / 5m / 6m | |||||||
| Working Radius | L - 200mm | |||||||
| Working Radius Range | 1m | 1m | 1m | 1m | 1m / 1.5m / 1.8m | 1.8m | 1.8m | |
| Lift Speed (m/min) | 8/2 | 4/1, 10/2.5 | 5/1.25, 10/2.5 | 5/1.25, 8/2 | 4/1 | 4 | 8 | |
| Traveling Speed (m/min) | 7 / 14 / 28 | |||||||
| Rotation Speed | 0.8 r/min | |||||||
| Rotation | 360° | |||||||
| Machine Height (m) | 3.6 / 3.75 / 3.8 / 3.85 | 3.75 / 3.8 / 3.85 | 3.85 / 3.94 / 4.0 | 4.05 / 4.1 / 4.15 | 4.25 / 4.4 / 4.45 | 4.3 / 4.45 / 4.5 / 4.65 | 4.6 / 4.9 / 4.95 | |
| Motor | Rotation Motor (kW) | 0.37 | 0.37 | 0.37 / 0.55 | 0.37 / 0.55 | 0.55 / 0.75 / 1.1 | 0.55 / 0.75 / 1.1 | 1.1 |
| Lift Motor (kW) | 0.2 / 0.05 | 0.2 / 0.05, 0.5 / 0.13 | 0.5 / 0.13, 1.0 / 0.25 | 1.0 / 0.25, 1.5 / 0.35 | 1.5 / 0.35 | 2.3 | 2.3 | |
| Traveling Motor (kW) | 0.14 | 0.14 | 0.14 | 0.2 | 0.2 | 0.4 | 0.5 | |
