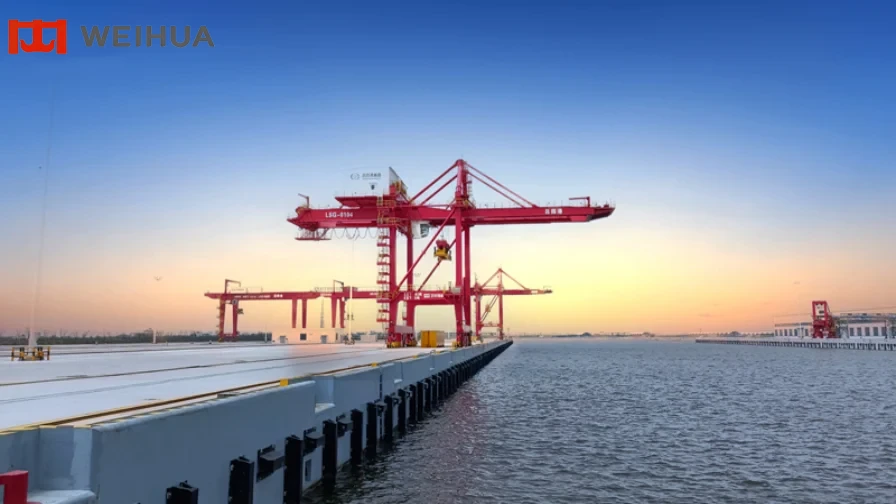

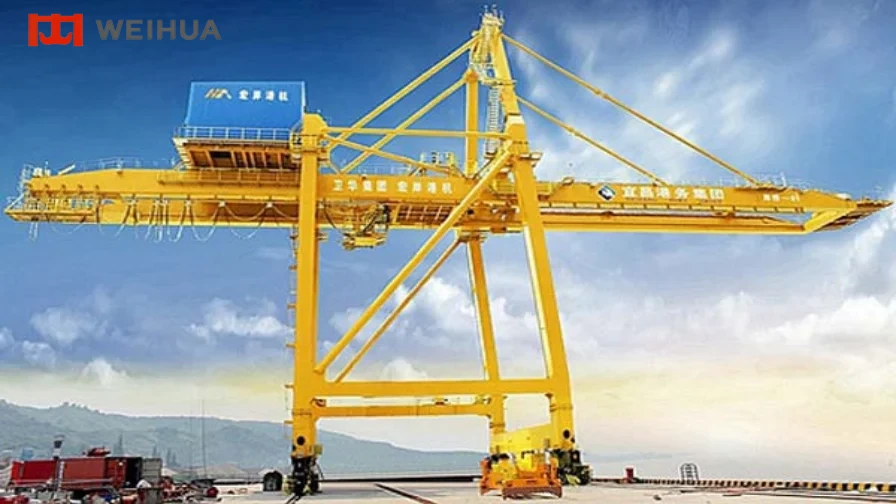

The Ship-to-Shore (STS) container crane serves as the core handling equipment for front-line container terminals, supporting the efficient and orderly operation of modern port logistics. Specially developed for vessel container loading and unloading, it realizes seamless cargo transfer between container ships and shore terminals. With high-precision positioning and stable operating performance, the equipment ensures safe, fast and reliable container transportation in both ship-to-shore and shore-to-ship working cycles.

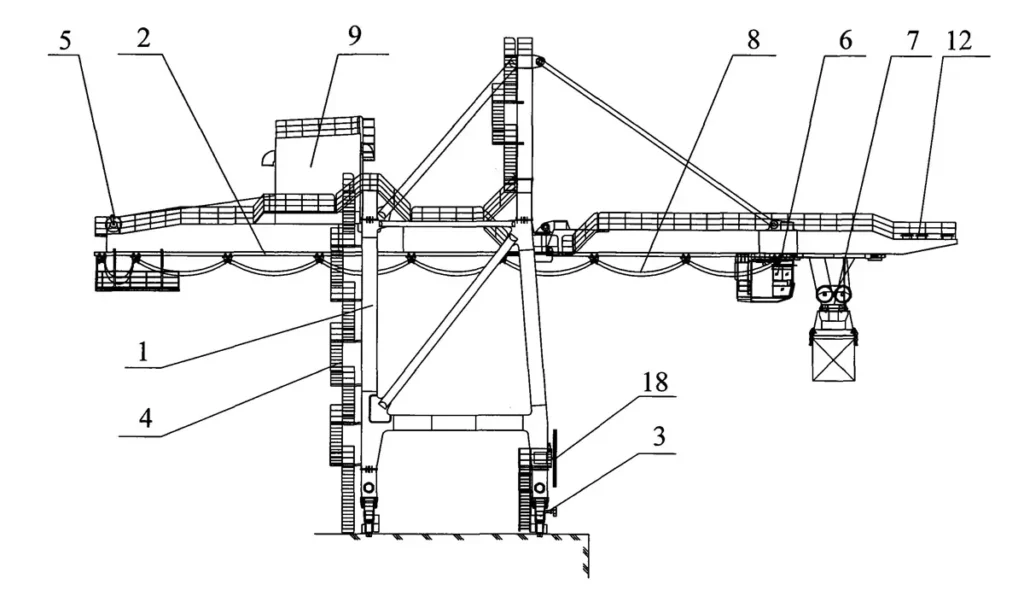

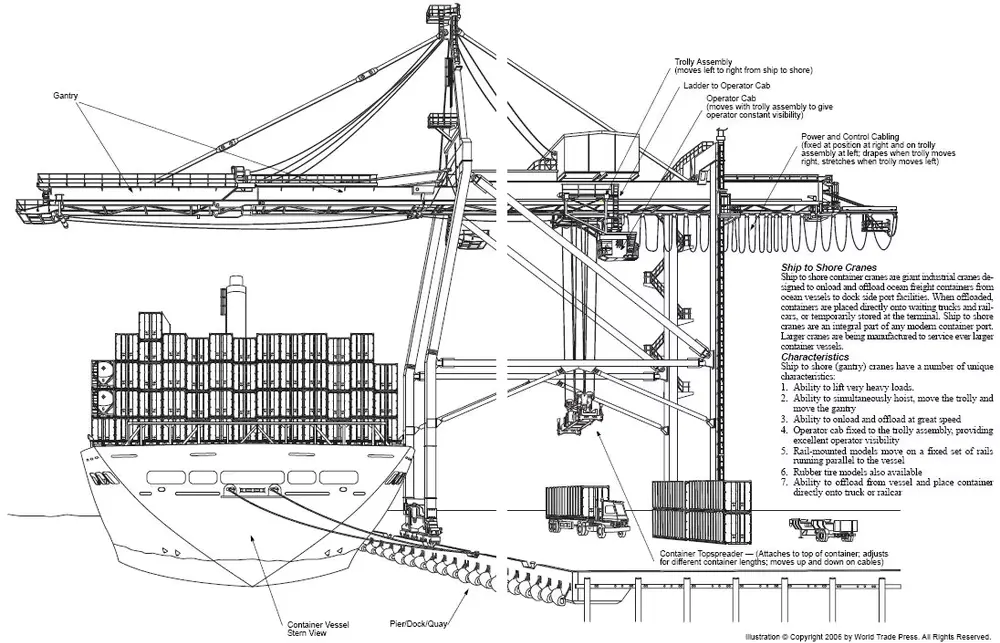

Structure & Working System
           The STS crane adopts a high-strength integral metal structure, delivering outstanding rigidity and overall stability to sustain long-term heavy-load port operation. The whole machine is designed and manufactured in strict accordance with international authoritative standards including FEM, DIN, IEC, AWS and Chinese GB standards, realizing consistent global-level quality and advanced comprehensive performance.

           Equipped with full digital AC variable frequency and PLC intelligent control system, every mechanical action achieves precise, flexible and programmable control. The lifting mechanism covers a rated load range from 35 tons to 65 tons, stably handling both full-load and empty containers. The trolley system supports accurate horizontal traversing for precise container positioning, while the gantry travelling mechanism steadily moves along quay rails to adapt to different ship berthing positions. The professional tilting mechanism dynamically adjusts operating angles according to vessel posture changes, effectively improving overall handling efficiency.

Key Components & Safety Protection
           The trolley assembly acts as the core execution unit for container hoisting and positioning, cooperating with multiple mechanical and electrical systems to ensure smooth and continuous operation. The integrated tilting and cabin anti-collision safety system provides active protection against container swinging and accidental collision risks, rapidly responding to abnormal working conditions to avoid equipment damage and guarantee terminal operational safety.

           Multiple auxiliary functional devices are equipped to further enhance the equipment’s operational stability, convenience and comprehensive safety level, adapting to high-intensity continuous working conditions of modern ports.

The STS quay crane supports flexible matching of single and double container spreaders to meet diversified terminal operation demands. The optional electronic intelligent anti-sway system effectively suppresses container swinging, greatly improving handling accuracy, operational safety and working efficiency.

Adopting multi-drive frequency conversion feedback technology, the whole machine features optimized power output and upgraded comprehensive performance. With large rated lifting capacity and super-long outreach design, it covers a wider ship operation range. Real-time position data acquisition and intelligent algorithm control realize precise spreader trajectory control, achieving high-efficiency and high-precision container loading and unloading.

Weihua Crane provides fully personalized STS ship-to-shore crane solutions for modern high-efficiency port terminals. Tailored for intensive container handling scenarios, the customized equipment delivers stable heavy-load performance and fast cargo turnover capability, realizing efficient and stable ship-shore container transfer operations.

Core parameters including lifting capacity, front outreach, back reach, lifting height and rail gauge can be flexibly adjusted according to actual vessel specifications and terminal layout conditions, realizing efficient and stable ship-shore container transfer operations.

Optional Configurations
           Automatic telescopic spreader compatible with multiple container sizes
           High-end intelligent anti-sway control system for ultra-precise positioning
           PLC-based intelligent control platform and remote operation system
           High-efficiency energy-saving variable frequency drive system
           Real-time data monitoring system supporting smart port integration

Our professional engineering team ensures high-speed circulation, full operational safety and long-term equipment reliability, providing advanced and reliable STS crane solutions for modern port container handling and global logistics development.
