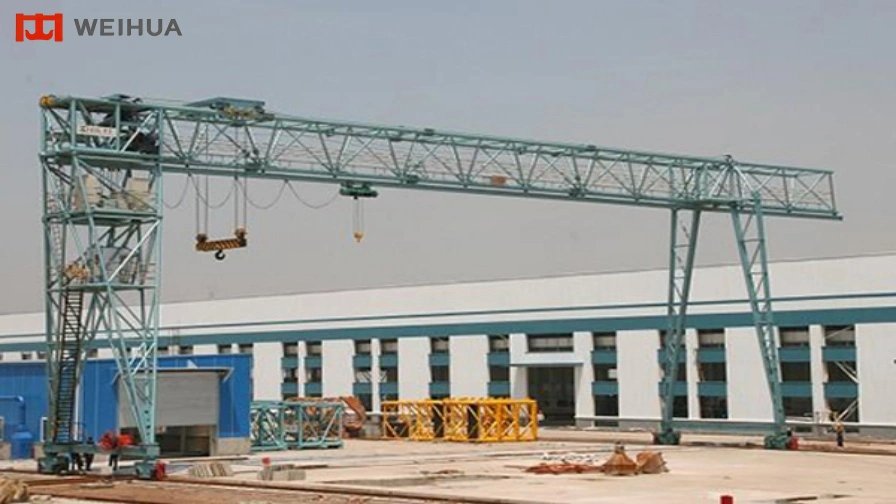

The MH series electric hoist gantry crane is a medium and small track-traveling lifting device, compatible with CD1 and MD1 type wire rope electric hoists. Its common working specifications cover a lifting capacity of 5 to 20 tons and a span of 14 to 35 meters, with an adaptable ambient temperature range of -20℃ to +40℃.
As a conventional general-purpose lifting equipment, this gantry crane is widely applied in open yards and warehouse areas for material loading, unloading and grabbing work. It supports two operational modes: ground handheld control and cab operation. Two power supply methods, including cable trolley and cable reel, are optional to meet different site layout demands.

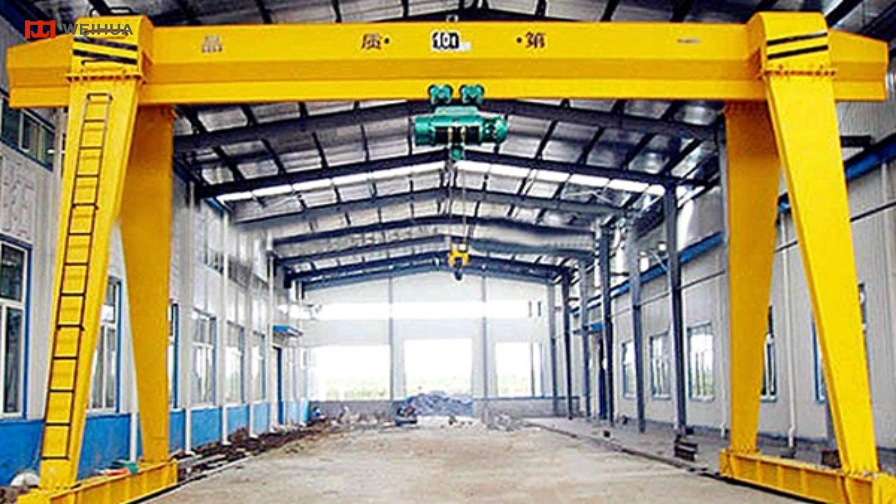

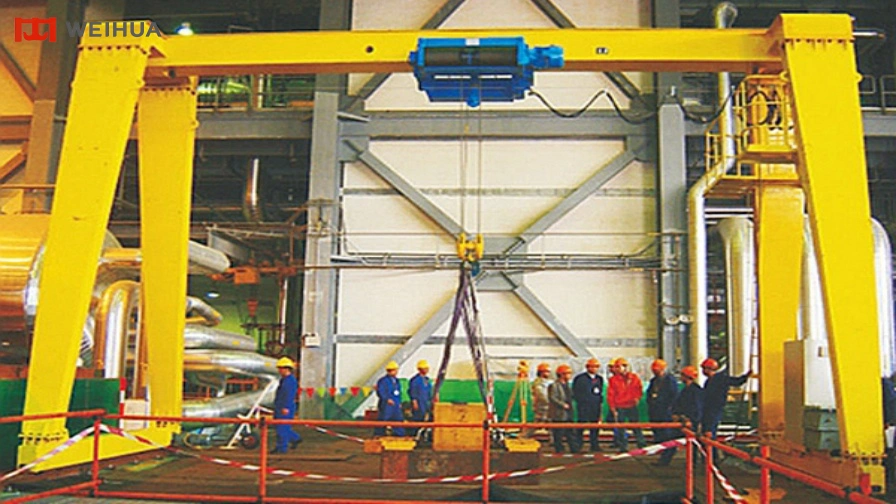

Weihua Crane offers fully tailored MH electric hoist gantry crane solutions for factories, workshops, warehouses and light-duty outdoor storage yards. The equipment features steady lifting performance and accurate operation, supporting stable and efficient handling of light and medium-weight goods, small equipment and various industrial components.
Core parameters including lifting capacity, span, lifting height and rail gauge support flexible personalized adjustment. It can adapt to diverse workshop and yard layouts as well as light-to-medium load handling standards, ensuring stable, efficient and safe on-site operation.
Optional Configurations
Electric and hybrid trolley drive systems
Automatic and remote intelligent operation modules
Anti-sway and positioning devices for accurate light and medium load handling
Energy-efficient drive units with regenerative braking function
Customized structural design to fit exclusive workshop and yard rail layouts
Our professional engineering team guarantees high operational efficiency, operational safety and long-term equipment stability, supplying reliable optimized lifting solutions for modern factory production, indoor warehousing and outdoor light-duty material handling projects.

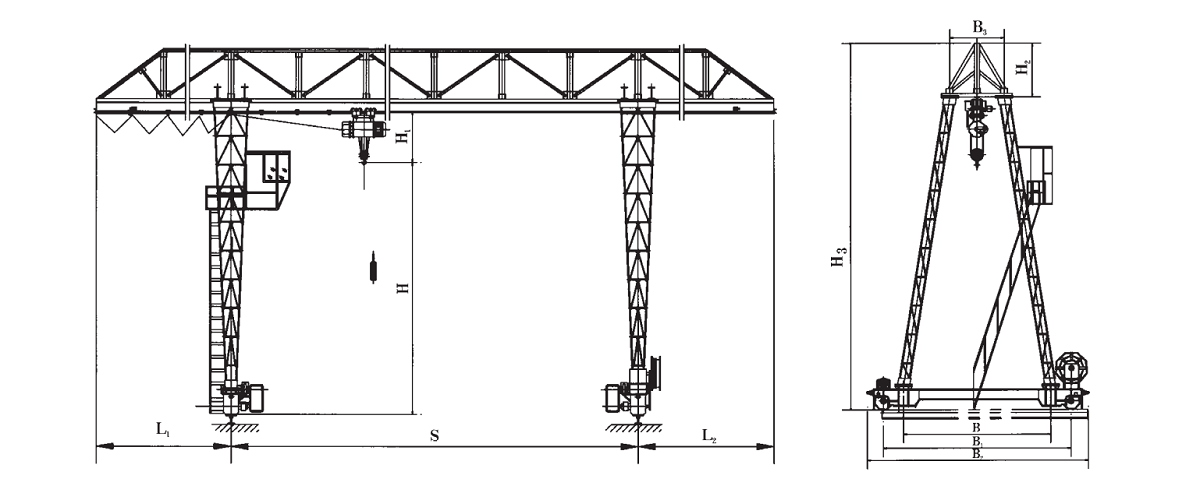

Technical Parameters
| Item | Sub Item | Unit | Spec 1 | Spec 2 | Spec 3 | Spec 4 | Spec 5 | |
|---|---|---|---|---|---|---|---|---|
| Speed | Hoist lifting | m/min | 8,8/0.8 | 8,8/0.8 | 7,7/0.7 | 3.5 | 3.5 | |
| Hoist travelling | m/min | 20 | 20 | 20 | 20 | 20 | ||
| Crane travelling | Handle / remote control | m/min | 20 | 20 | 20 | 20 | 20 | |
| cab | m/min | 30,40 | 30,40 | 30,40 | 30,40 | 30,40 | ||
| Motor | Hoist lifting | Type / kw | ZD41-4/4.5 | ZD141-4/7.5 ZDS10.8/4.5 | ZD151-4/13 ZDS11.5/4.5 | ZD151-4/13 | ZD152-4/18 | |
| Hoist travelling | ZDY12-4/0.4 | ZDY121-4/0.8 | ZDY21-4/0.8×2 | ZDY121-4/0.8×2 | YZD-4/0.8×4 | |||
| Trolley travelling Handle /remote control |
ZDY21-4/0.8×2 ZDY21-4/1.5×2 |
YZR132M1-6/2.2×2 YZR132M2-6/3.7×2 |
YZR160M1-6/6.3×2 | YZR160M1-6/6.3×2 YZR160M2-6/8.5×2 |
YZR160M1-6/6.3×2 YZR160M2-6/8.5×2 |
|||
| ZDR22-4/1.5×2 ZDR24-4/2.2×2 |
YZR132M2-6/3.7×2 YZR160M1-6/5.5×2 |
YZR160M1-6/6.3×2 | YZR160M2-6/8.5×2 YZR160L2-6/11×2 |
YZR160M2-6/8.5×2 YZR160L2-6/11×2 |
||||
| Electric hoist | Type | CD1/MD1 | CD1/MD1 | CD1/MD1 | CD1 | HC | ||
| Lifting height (m) | m | 6,9 | ||||||
| Work classifications | - | A5 | ||||||
| Power | - | 380V 50HZ 3phase AC | ||||||
| Span (m) | m | 12,16,20,24,30 | ||||||
