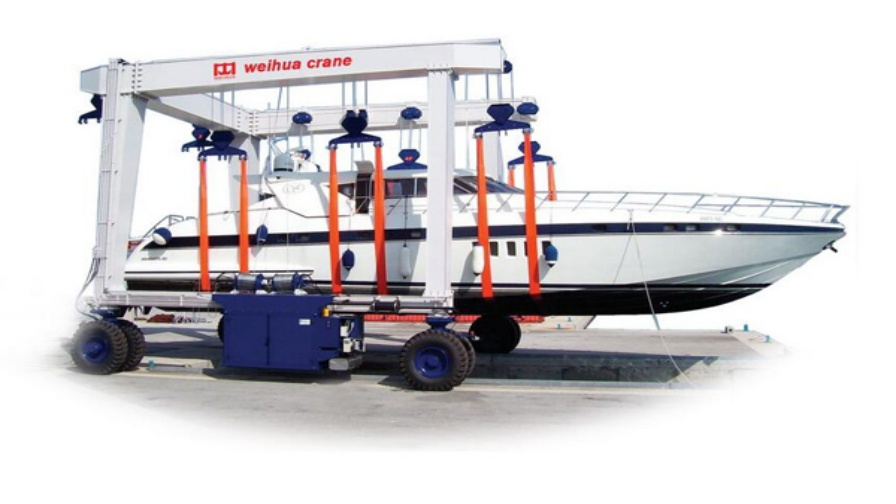

The yacht handling gantry crane, also referred to as a mobile boat handler, is a rubber-tyred gantry crane professionally developed for yacht and vessel hoisting and transportation. It is widely applied in yacht clubs, water sports venues, maritime navigation, shipping industries and marine training bases. The equipment covers a broad lifting tonnage range from 32 tons up to 1000 tons, enabling efficient shore-to-land transfer for yacht maintenance, hull repair and new vessel launching operations.

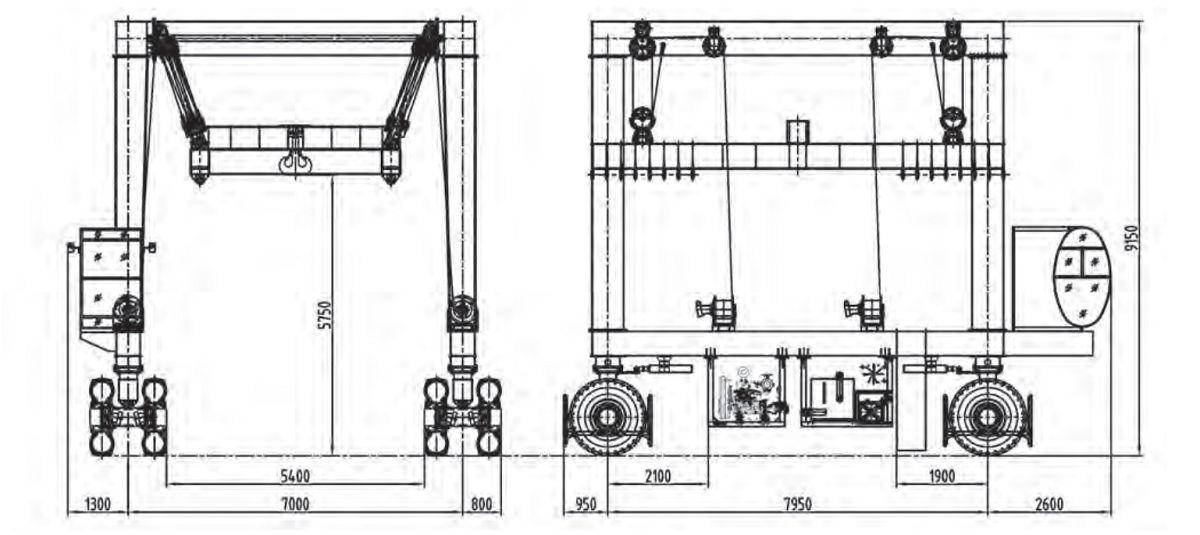

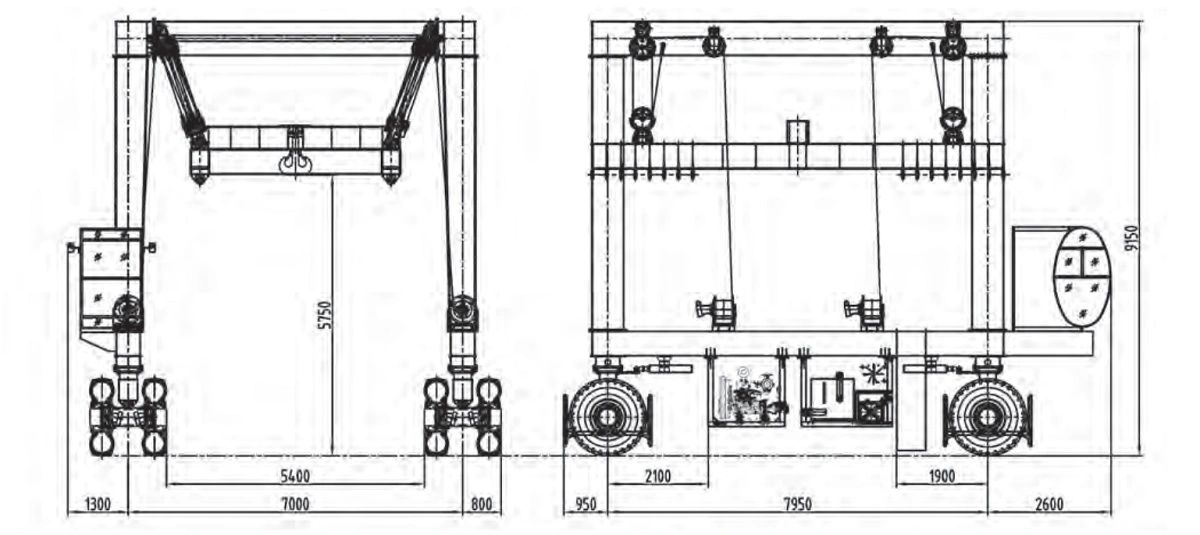

The complete equipment structure consists of main frame, travelling wheel assemblies, hoisting units, steering mechanism, hydraulic transmission system and intelligent electrical control system. Adopting a unique N-type main structure, the crane allows vessels with superstructure height exceeding the crane body to pass through smoothly, greatly improving handling flexibility.

Customizable for diverse working demands, the crane supports 10-ton to 800-ton yacht and boat shore handling. It undertakes onshore docking maintenance and new ship launching tasks. Different from traditional cranes, this yacht handler adopts soft and high-toughness lifting belts to protect hull surfaces from scratches and extrusion damage. It also enables rapid, orderly vessel arrangement with freely adjustable spacing between berthed boats, optimizing yard storage layout.

1. Supports multi-directional flexible travelling, including diagonal movement and 90° steering. It can accurately position and place vessels at any designated yard coordinate to meet precise berthing requirements.

2. The main girder width is adjustable on demand, adapting to vessels of different beam widths and realizing flexible side-by-side boat handling.

3. Integrates cost-efficiency and high working performance, featuring simple operational logic and convenient daily maintenance to lower overall operational thresholds.

4. Low daily running costs. Soft belt hoisting completely avoids hull surface damage, eliminating secondary repair costs caused by handling scratches.

5. Enables rapid and orderly vessel arrangement with adjustable berth spacing, improving marina and boatyard space utilization and overall turnover efficiency.

Weihua Crane delivers fully tailored yacht and boat handling crane solutions for marinas, professional boatyards and waterfront operation sites. Optimized for marine vessel management, the customized equipment provides stable lifting capacity and ultra-precise handling performance, ensuring reliable and efficient yacht and boat turnover and maintenance work.

Core parameters including lifting capacity, working span, lifting height and structural width support flexible personalized adjustment. Custom configurations adapt to different yard layouts and diversified vessel handling standards, realizing safe, standardized and high-efficiency marine operation.

Optional Configurations
           Electric and hybrid drive systems
           Intelligent automatic control and remote operation system
           Professional anti-sway and positioning device for high-precision yacht handling
           Energy-saving driving unit with regenerative braking function
           Customized structural design matching exclusive boatyard and marina layouts

Our professional engineering team guarantees high operational efficiency, intrinsic safety and long-term equipment stability, providing advanced and reliable handling solutions for modern marinas, boatyards and all waterfront vessel operation scenarios.
