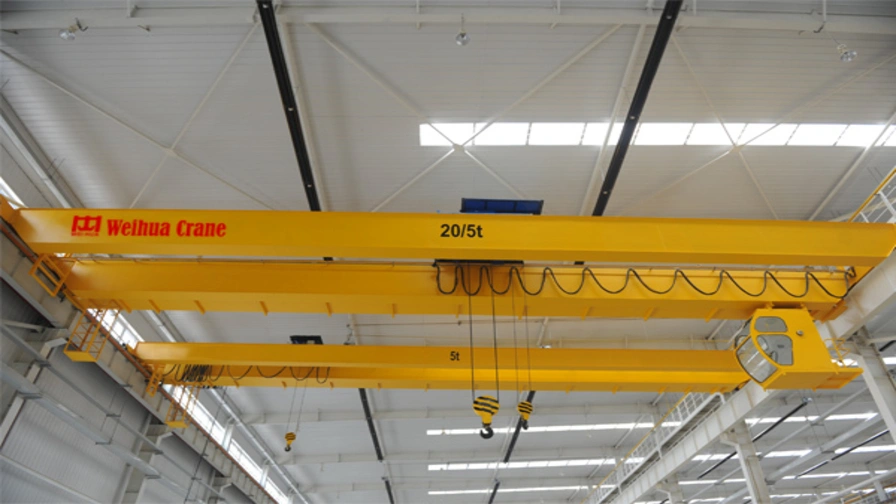

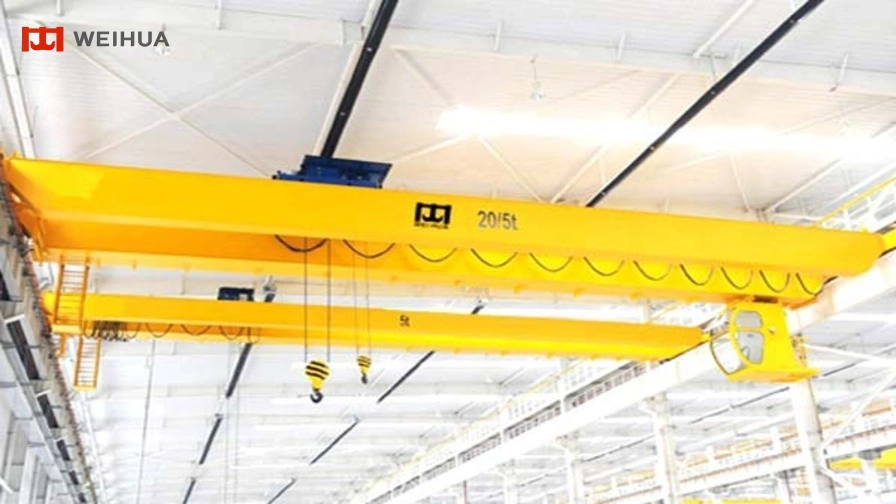

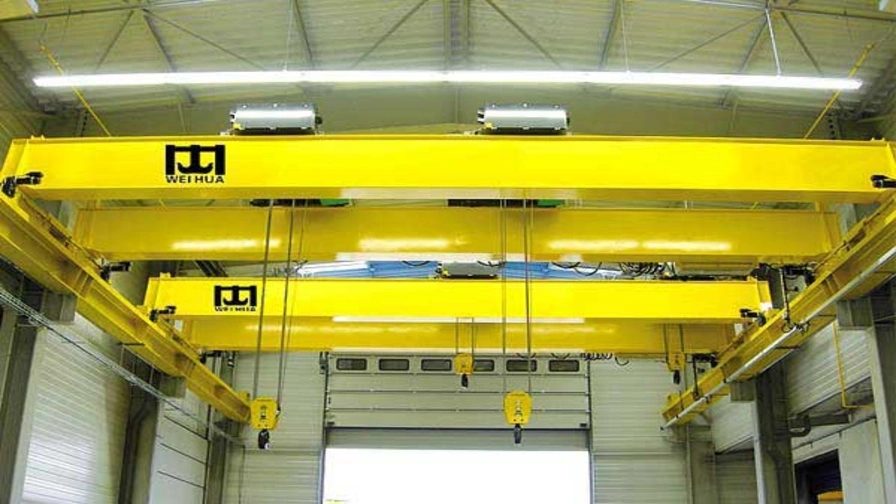

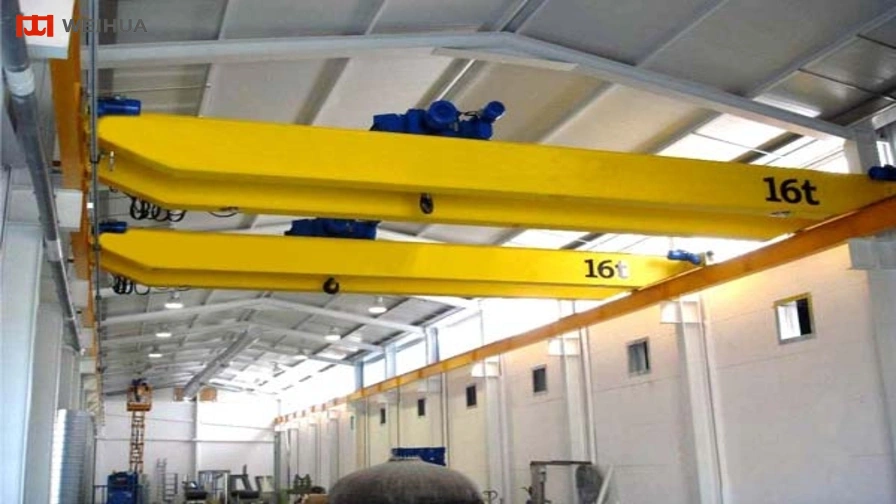

Electric hoist double girder overhead cranes are suitable for lifting workpieces with a load range of 5t to 50t. The crane features flexible installation, compatible with both newly built and renovated existing workshops, and comes with abundant functional modules for intuitive operation. Benefiting from compact layout, light dead weight and large effective lifting height, this model is extensively adopted in production workshops, metallurgical processing zones, storage warehouses and equipment assembly plants.
Weihua’s electric hoist double girder overhead crane adopts aesthetic fully welded box main girders optimized via computer simulation calculation, which balances outstanding mechanical performance and lightweight design. The maximum customizable working span can reach up to 40 meters.
Weihua full-series overhead lifting equipment is widely deployed across mechanical manufacturing, metallurgical smelting, power generation, railway logistics, port terminals, petroleum exploitation and chemical processing sectors. Our lifting machinery provides stable heavy-load handling support for numerous national key construction projects and production bases of large industrial conglomerates worldwide.
Twin box-type main girders formed by full automatic welding process
Fabricated from premium Q235B and Q345B carbon structural steel plates
Main girders and end carriages connected with high-strength bolt assemblies for easy disassembly and transportation
All critical welding joints pass X-ray and ultrasonic non-destructive flaw detection to eliminate hidden welding defects
Heavy-duty running wheels made of integrated forging process with strong wear resistance

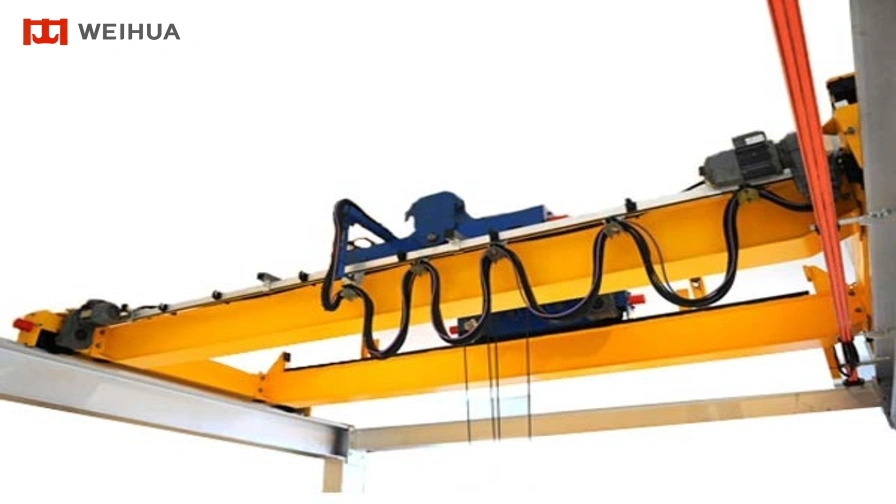

Hoist trolley with ultra-compact volume and reduced self-weight to save overhead space
Open winch trolley layout for the lifting mechanism, convenient for routine inspection and maintenance
Three-in-one integrated compact motor-reducer drive unit with stepless variable speed regulation, surface-hardened transmission gears and reliable disc safety brakes
Smooth vibration-free travel performance realized by stepless speed adjustment to reduce impact on workshop buildings and workpieces
Post-weld shot blasting treatment up to Sa2.5 cleanliness grade to eliminate internal welding stress of main girders
Surface anti-corrosion coating with high-performance epoxy zinc-rich primer, total paint film thickness reaching 140μm for long-term rust prevention
Complete Safety Protection Devices
Overload limiting device, lifting & travel stroke limit switches, electrical interlock protection assemblies, polyurethane buffers, track cleaning sweepers, mechanical safety shields, busbar protective cover plates, inter-crane anti-collision devices, main circuit isolation disconnecting switch, full-system emergency stop system and motor over-current overload protection.
Weihua Crane delivers fully tailor-made electric hoist double girder overhead crane packages dedicated to machinery manufacturing factories, storage warehouses, logistics hubs and general industrial workshops. Featuring reliable heavy-load capacity and precise stable manipulation, these custom cranes maintain dependable performance for daily handling of heavy industrial goods and mechanical processing workpieces.
All core technical indicators including lifting tonnage, working span, vertical lifting height and track gauge can be flexibly adjusted to fit diverse plant building layouts and universal heavy lifting production standards, supporting consistent efficient and secure round-the-clock material handling.
Optional Configurations
Full-electric and hybrid trolley driving assemblies
Intelligent full-automatic operation system matched with wireless remote control module
Dedicated anti-sway and high-precision positioning unit for stable industrial workpiece transportation
Energy-saving drive assemblies equipped with regenerative braking function
Custom structural optimization to match unique runway layouts inside various production and logistics workshops
| Lifting Capacity | t | 5 | 10 | 16 | 20 | 32 |
| Span | 10.5m ~ 31.5m, and customizable | |||||
| Lifting Height | m | 6m ~ 24m, and customizable | ||||
| Lifting Speed | m/min | 8 8/0.8 | 7 7/0.7 | 3.5 0.35/3.5 | 3.3 0.33/3.3 | 3.3 0.33/3.3 |
| Trolley Traveling Speed | m/min | 20 | 20 | 20 | 20 | 20 |
| Crane Traveling Speed | m/min | 30 | 30 | 30 | 30 | 30 |
| Work Duty | A4 | |||||
| Power Supply | 380V, 50Hz | |||||
Europ Standard Electric Hoist Double Girder Overhead Crane Technical Specifications
| Lifting Capacity | t | 5 | 10 | 16 | 20 | 32 | 50 | |
| Span | 10.5m ~ 31.5m, and customizable | |||||||
| Lifting Height | m | 6m ~ 24m, and customizable | ||||||
| Lifting Speed | m/min | 0.8/5 | 0.8/5 | 0.66/4 | 0.53/3.4 | 0.8/3.3 | 0.53/3.2 | |
| Trolley Traveling Speed | m/min | 2~20 | 2~20 | 2~20 | 2~20 | 2~20 | 2~20 | |
| Crane Traveling Speed | m/min | 3~30 | 3~30 | 3~30 | 3~30 | 3~30 | 3~30 | |
| Work Duty | A5 | |||||||
| Power Supply | 380V, 50Hz | |||||||
