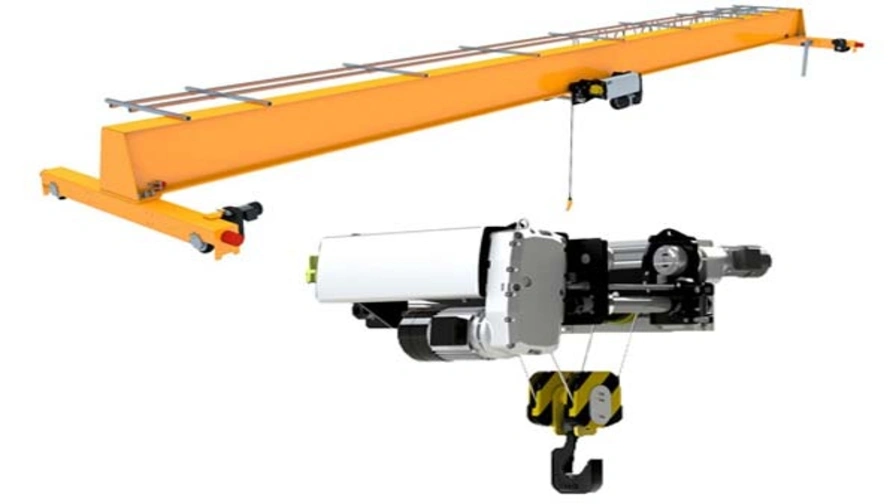

This single girder overhead crane is engineered and fabricated in strict accordance with premium European FEM and DIN industrial norms. Featuring an ultra-compact frame and minimized wheel pressure, it maximizes the utilization rate of restricted indoor workshop space while cutting clients’ factory civil construction expenses effectively.
The FEM/DIN single girder overhead crane serves as high-efficiency logistics handling equipment applicable to mechanical manufacturing plants, metallurgical workshops, port terminals, railway freight yards and indoor storage warehouses. It stands out especially for production sites requiring millimeter-level accurate load positioning.
The box-section main girder adopts computer-aided optimized design. Whole-length web plates are shaped by CNC cutting to guarantee precise deflection parameters of the finished beam.

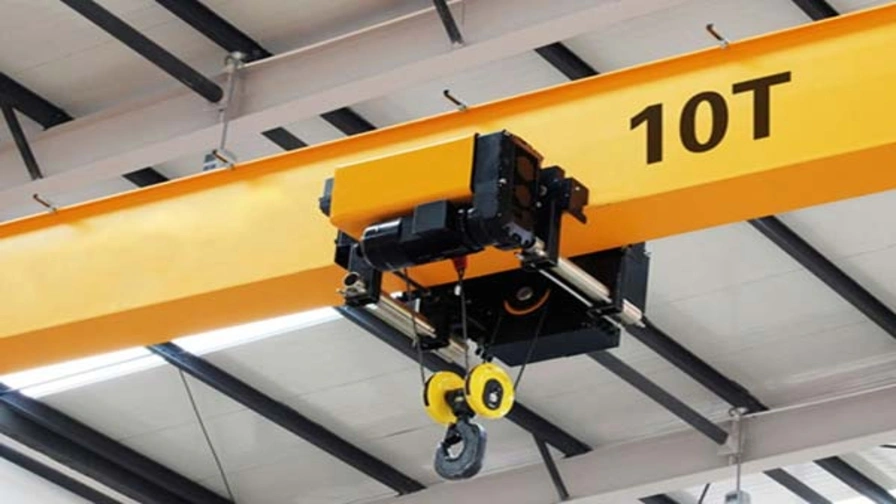

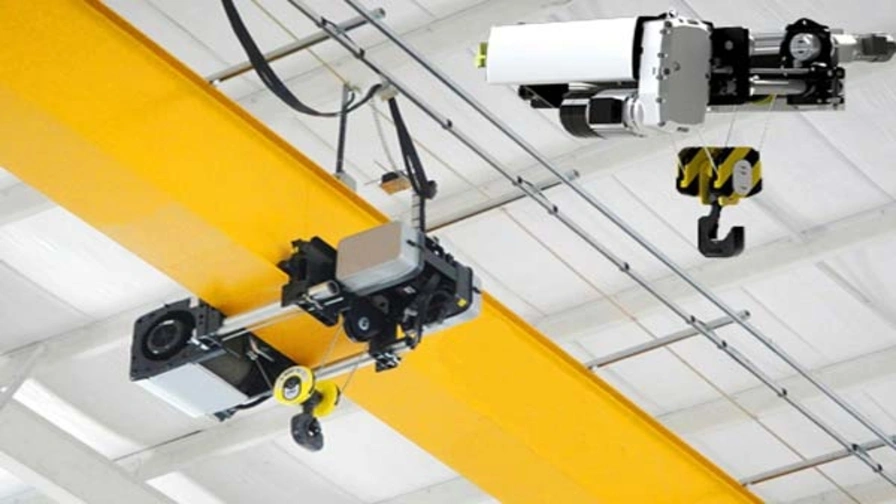

Low-clearance trolley layout paired with well-matched hook dimensions expands the effective vertical lifting range and broadens applicable working scenarios.
Equipped with curved or flat travel wheels, low-friction bearings, honeycomb-shaped shock buffers and derailment prevention assemblies for full running safety.
Integrated three-in-one motor drive delivers stepless variable speed regulation; the unit is fitted with surface-hardened reducers and disc safety brakes for reliable load holding.
Stepless speed adjustment enables vibration-free, ultra-stable trolley movement during all lifting cycles.
Post-weld shot blasting reaches Sa2.5 cleanliness standard to eliminate internal welding stress, preserving long-term stable mechanical performance of the main girder.
Surface anti-corrosion coating adopts epoxy zinc-rich primer with a total paint film thickness of 140 μm to resist oxidation and rust.
Complete Safety Protection Accessories
Fall arrest locking reducer to avoid accidental load dropping in case of component failure
Dedicated rainproof shielding cover for outdoor deployed electric hoists
Integrated sound-light warning alarm indicator lamps
Infrared sensing anti-collision system to prevent collisions between adjacent cranes

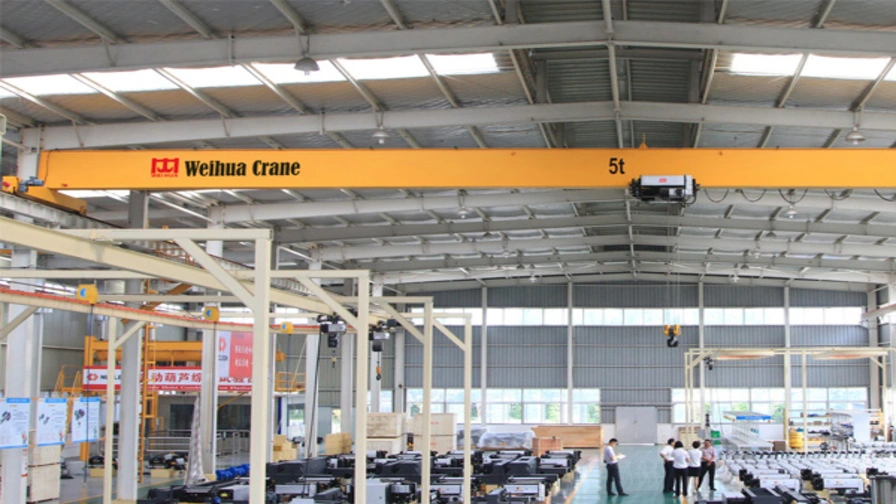

Weihua Crane delivers fully tailor-made single girder overhead crane packages compliant with FEM and DIN standards, built for light and medium-load indoor workshops and logistics storage hubs. With stable load capacity and high-precision manipulation, these standardized cranes realize dependable daily transfer of industrial components and bulk raw materials.
All core technical indicators including lifting tonnage, working span, vertical lifting height and track width can be adjusted flexibly to fit diverse plant layouts and universal light & medium-duty lifting standards, supporting consistent efficient and risk-free operation while meeting European industrial specifications.
Optional Configurations
Full-electric and hybrid trolley driving assemblies
Intelligent automatic operation system plus wireless remote control module
Anti-sway and high-precision positioning unit for stable industrial workpiece handling
Energy-efficient driving equipment equipped with regenerative braking function
Custom structural transformation to match unique runway layouts inside different factories and warehouses
Our professional engineering R&D team focuses on high cyclic handling efficiency, comprehensive multi-layer safety interlock protection and extended equipment service lifespan, supplying state-of-the-art standard-compliant lifting solutions for modern mechanical processing workshops, general manufacturing plants and indoor logistics storage facilities.
| Lifting Capacity(t) | Span(m) | Lifting Height(m) | Lifting Speed(m/min) | Hoist Traveling Speed(m/min) | Crane Traveling Speed(m/min) | Recommended Track |
|---|---|---|---|---|---|---|
| 1 | 7.5~22.5 | 6~12 | 0.8/5 | 2~20 | 3~30 | P24 |
| 2 | 6~12 | 0.8/5 | 2~20 | 3~30 | P24 | |
| 3.2 | 6~12 | 0.8/5 | 2~20 | 3~30 | P24 | |
| 5 | 6~12 | 0.8/5 | 2~20 | 3~30 | P24、P30 | |
| 10 | 6~12 | 0.8/5 | 2~20 | 3~30 | P30 | |
| 12.5 | 6~12 | 0.66/4 | 2~20 | 3~30 | P30 | |
| 16 | 9~12 | 0.66/4 | 2~20 | 3~30 | P43 | |
| 20 | 9~12 | 0.66/4 | 2~20 | 3~30 | P43 | |
| Work Duty | A5 | |||||
| Power | 380V, 50Hz or Other | |||||
| Temperature of Working Environment | -20℃~ +40℃ | |||||
