Low clearance overhead cranes belong to optimized lifting machinery redesigned on the basis of standard overhead crane frameworks. By reengineering the layout of electric hoists and main girders, this series shortens the vertical distance between the hook assembly and the beam to the maximum extent, expanding usable lifting travel and making full use of limited indoor plant space. Such cranes serve as ideal upgrades for aging factory reconstruction projects, newly built facilities with low ceiling clearance, and all production sites hoping to maximize vertical hoisting space.

Main Classifications of Low Clearance Overhead Cranes

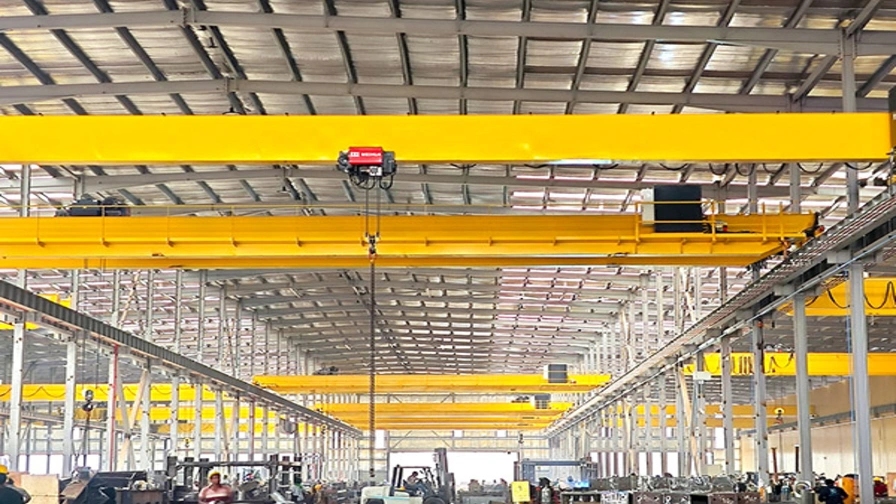

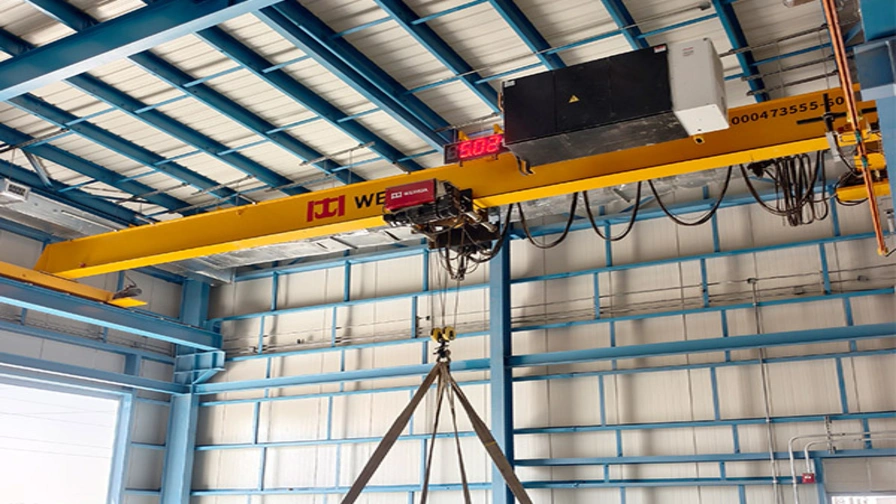

1. Single girder low clearance overhead crane: Light integral frame, applicable for light and medium load tasks with typical tonnage ranging from 1 ton to 20 tons

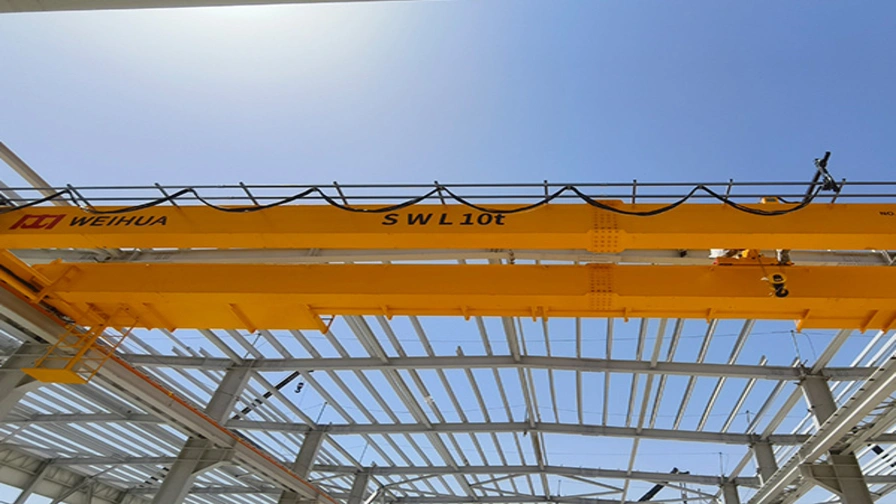

2. Double girder low clearance overhead crane: Boasts stronger load-carrying capacity, built to sustain round-the-clock heavy-duty and frequent cyclic lifting work

Unique Structural Features

This optimized crane series adopts miniaturized electric hoist units, side-hung or built-in trolley structures, and streamlined cross-section main girders. The lightweight structural design effectively lowers wheel load pressure on factory rails. The minimized gap between the hook and main beam delivers larger effective lifting height, paired with steady travel motion and high-accuracy load positioning.

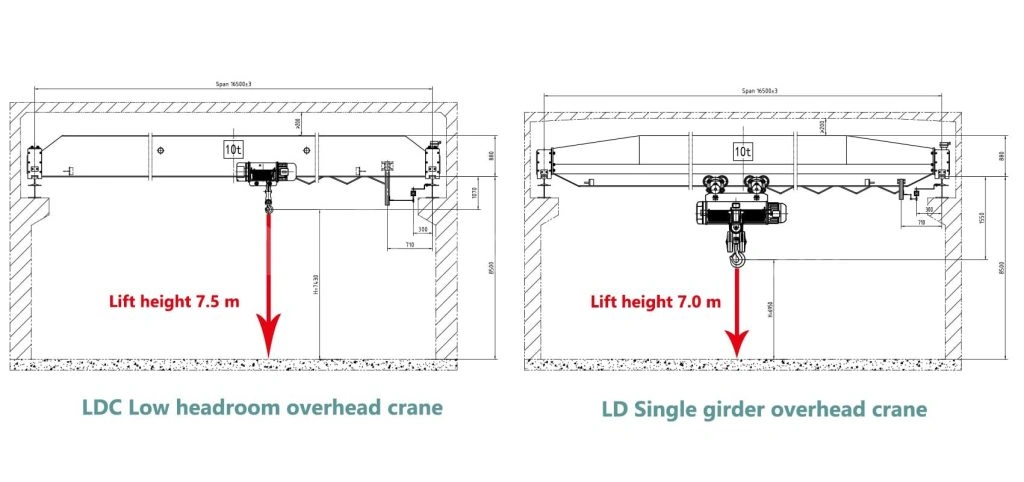

Developed specifically for factories with tight vertical space limits, low clearance overhead cranes unlock extra lifting height under fixed ceiling dimensions. They also help factories cut civil engineering expenses while meeting standard hoisting demands. Distinct from conventional overhead cranes, this optimized model brings multiple upgraded benefits:

1. Redesigned Trolley & Hoist Assembly

   Asymmetric gearbox installation and built-in winding drum layout integrated into the load-bearing beam drastically shrink the overall vertical size of the travelling trolley.

2. Refined Steel Cable Routing System

   Revised pulley block arrangement eliminates repeated reverse bending of wire ropes, realizing space-saving installation while prolonging the service cycle of steel cables.

3. Modular & Standardized Production

   All units comply with European FEM industrial specifications, with highly interchangeable spare parts to simplify routine inspection, maintenance and component replacement work.

Weihua Crane delivers all-round tailored low clearance overhead crane packages for manufacturing plants and workshops with limited ceiling height. With powerful load capacity and accurate cargo handling performance, these custom cranes handle universal industrial material transportation stably and safely.

All core technical indicators including rated lifting weight, working span, vertical lifting stroke and track width can be adjusted freely to match various workshop layouts and space-restricted lifting demands, supporting consistent efficient and secure daily operation.

Optional Configurations

• Full-electric and hybrid trolley driving alternatives

• Intelligent automatic operating system and wireless remote control module

• Anti-sway device and precision positioning unit for stable industrial cargo transfer

• Energy-efficient driving assemblies equipped with regenerative braking system

• Dedicated structural customization to fit unique factory runway layouts

Our professional engineering team guarantees outstanding working efficiency, complete safety protection and long equipment service life, supplying premium lifting solutions for modern low-ceiling workshops and all space-limited industrial material handling scenarios.
