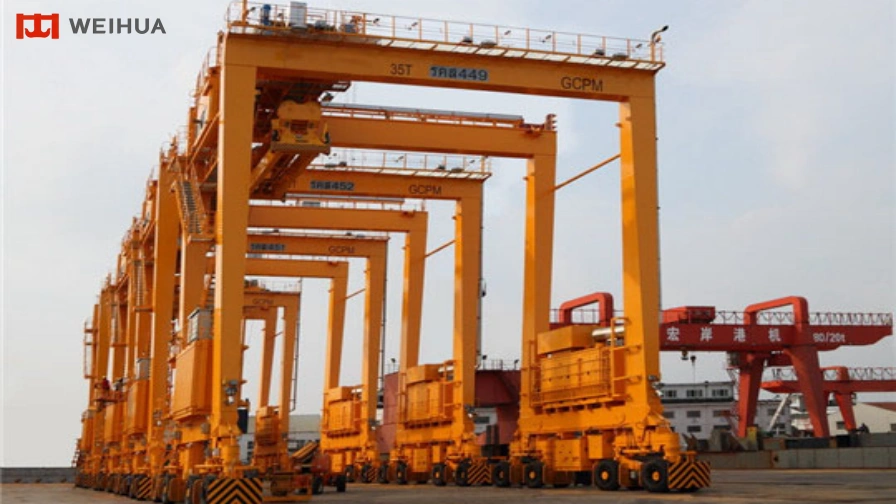

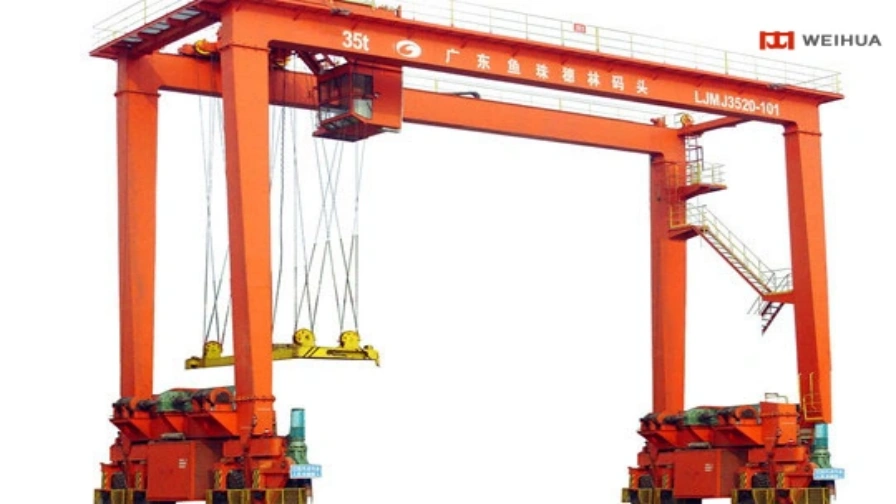

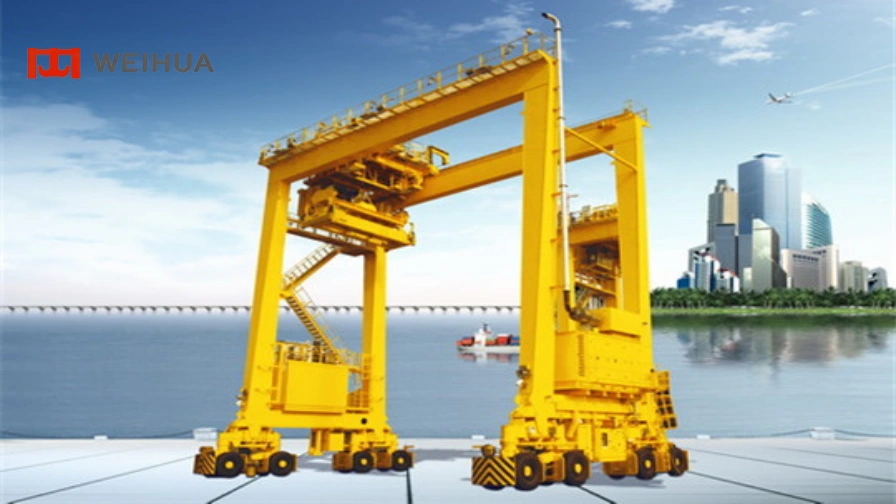

The Rubber Tyred Container Gantry Crane (RTG) is a highly flexible and efficient container handling equipment widely adopted in port terminals, container yards and comprehensive logistics hubs. Featuring rubber-tyred mobile design and intelligent control systems, the crane delivers outstanding stacking efficiency, accurate positioning performance and stable continuous operation, perfectly suited for high-frequency container turnover scenarios.
Specially developed for intensive container stacking, loading and unloading tasks, the RTG crane is equipped with multi-point container spreaders, efficiently handling mainstream 20ft, 40ft and 45ft standard containers. The whole machine adopts a full hydraulic driving scheme for both travelling and hoisting mechanisms, realizing stepless speed regulation and ultra-smooth operation. The closed hydraulic loop system ensures high transmission efficiency, low failure rate and consistent long-term working stability.
Supporting 360° flexible steering and free rubber-tyred movement, the crane can travel and turn freely inside container yards without fixed rail restrictions. The integrated CAN-BUS intelligent control system achieves precise motion control, real-time status monitoring and standardized operational management, greatly improving terminal safety and handling efficiency.
Core Technical Parameters
Rated Lifting Capacity: 5t – 40t
Applicable Container Type: 20ft / 40ft / 45ft standard containers
Steering Mode: 90° / 45° / 20° multi-directional flexible movement
Drive Type: Full hydraulic drive with stepless speed regulation
Operation Notes
Regular inspection and maintenance of the hydraulic system is required to sustain stable equipment performance. The crane must operate on flat and solid ground to ensure travelling safety and operational accuracy. Customized structural and functional configurations are available for special container handling and complex yard working conditions.
Port container terminals and storage yards
Railway freight terminals and intermodal logistics hubs
Large-scale container transshipment and warehousing bases
International shipping and comprehensive logistics service facilities
1. Flexible rubber-tyred travelling design with 360° full-range steering, realizing free movement and flexible route switching in container yards.
2. Full hydraulic driving system supports stepless speed adjustment, ensuring smooth, shock-free and low-noise operation.
3. Matched with professional container spreaders to efficiently and safely handle various standard container specifications.
4. Adopts integrated three-in-one reducer, featuring stable power output and convenient daily maintenance.
5. Advanced CAN-BUS bus control system realizes intelligent, precise and unified equipment operation management.
6. Equipped with complete safety indication devices and overload protection systems to prevent abnormal operation risks.
Weihua Crane provides fully tailored RTG rubber-tyred container gantry crane solutions according to different terminal layouts and container handling standards. The customized design focuses on flexible mobility and high operational efficiency, meeting diversified container stacking and transportation demands.
Core parameters including lifting capacity, container stacking height, working span and wheel grouping modes support flexible personalized adjustment, adapting to various yard planning schemes and actual operational requirements.
Optional Configurations
Diesel-electric / full-electric dual drive options
Intelligent automatic operation and remote control system
High-precision anti-sway and positioning system
GPS positioning and intelligent yard management system integration
Energy-saving and low-carbon environmental protection power solutions
Supported by our professional technical team, the RTG crane maintains high operational efficiency, flexible mobility and long-term reliability, providing advanced and cost-effective container handling equipment solutions for modern ports and logistics terminals.

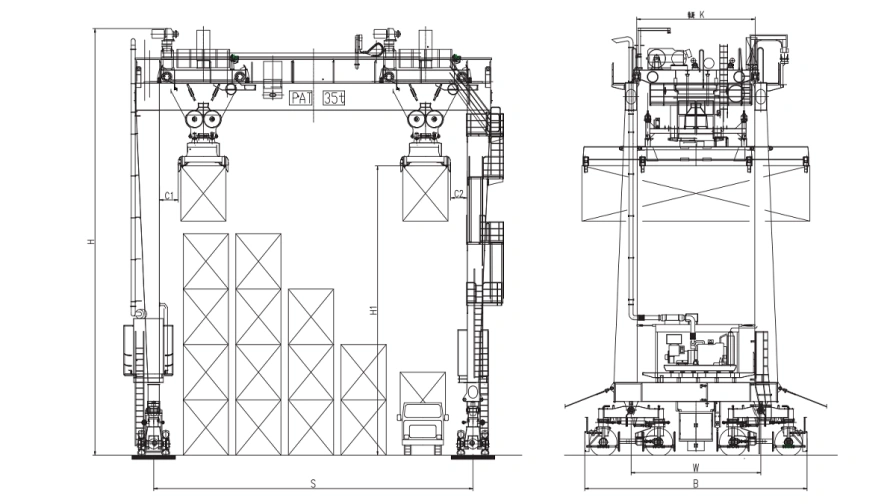

| Model | LJ35/40-23 | Light Type LJ40-32 |
|---|---|---|
| Lifting Capacity(under spreader)(t) | 35, 40 | 40 |
| Work Duty | A7, A8 | A6, A7 |
| Span(m) | 23, 47 | 23, 47 |
| Lifting Height(m) | 12.2~17.8 | 16.5 |
| Stack Layers/Passing Layers | 3/4~5/6 | 5/6 |
| Container Model | 20', 40', 45' | 20', 40', 45' |
| Spreader Rotating Angle | ±5° | ±5° |
| Hoisting Speed(m/min) | 13/26, 23/52 | 12/18, 18/28 |
| Cross Travel Speed(m/min) | 50, 70 | 24 |
| Long Travel Speed(m/min) | Full Load-90, Without Load-130 | Full Load-20 Without Load-40 |
| Max. Wheel Load(KN) | 310 | 310 |
| Total Rating(KW) | 150, 230 | 110, 150 |
| Power Supply | Electric, Diesel Engine, Electric-diesel Engine | |
