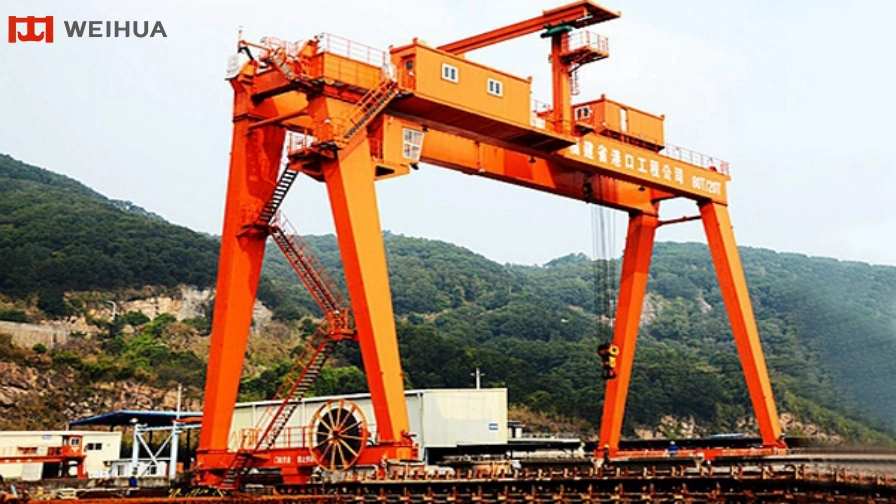

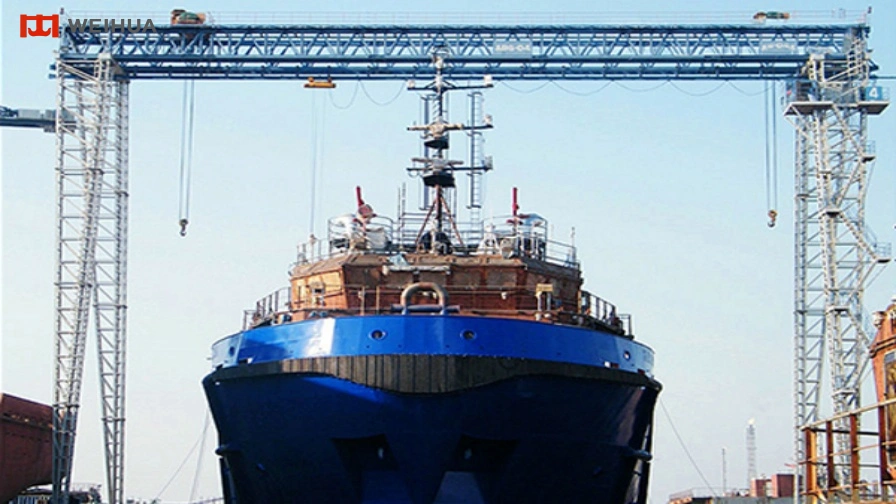

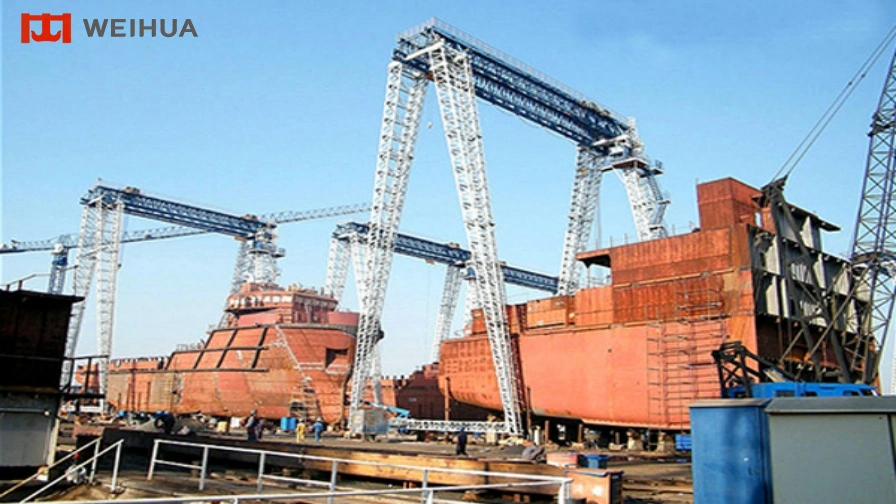

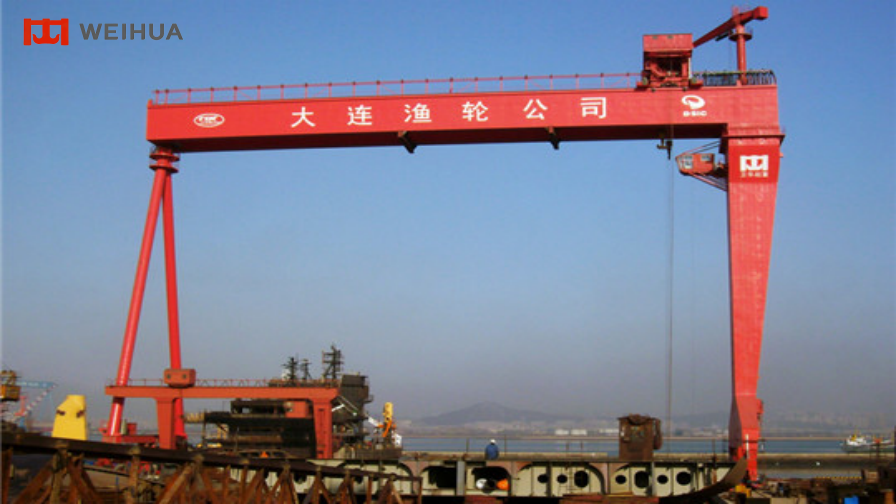

Shipbuilding gantry cranes are available in single girder and double girder configurations. For applications with large working spans and moderate lifting loads, the single girder type is a more cost-effective option for shipyard operation.
The single girder shipbuilding gantry crane consists of a steel gantry frame, upper and lower trolleys, trolley travelling mechanisms, maintenance and lubrication systems, access elevators and complete electrical sets. It is fully equipped with standard safety accessories including rail clamps or wheel brakes, anchoring devices, load limiters, wind speed and direction monitors, and travel limit switches. For ultra-wide span working conditions, an optional deviation correction system can be installed to ensure stable travelling.
Weihua possesses mature manufacturing experience in producing heavy-duty shipbuilding gantry cranes with large lifting capacity, high lifting height and wide spanning range.
Main Technical Parameters
1. Lifting capacity: 10–200 tons
2. Lifting height: 8–12 meters
3. Standard span range: 5–35 meters

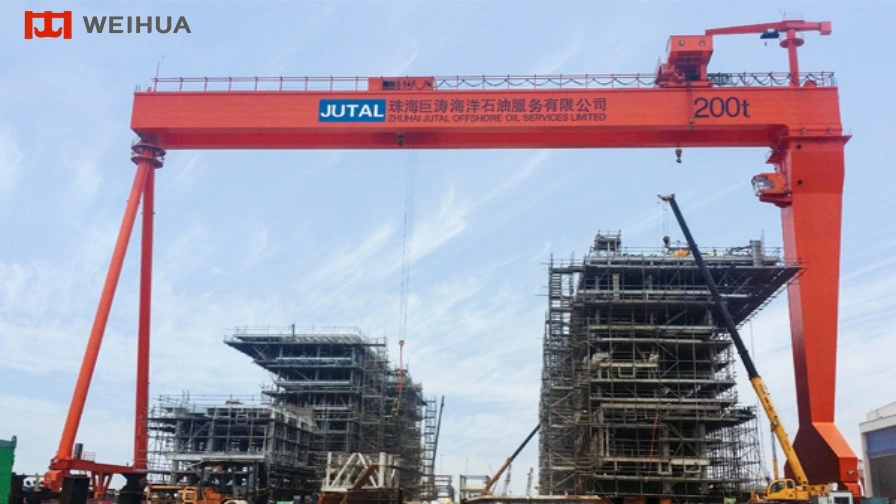

Weihua Crane delivers fully tailored shipbuilding gantry crane solutions for shipyards and manufacturing workshops. The equipment features strong load capacity and precise handling performance, supporting stable and efficient hoisting and management of ship components and hull sections.
Major parameters including lifting capacity, span, lifting height and rail gauge can be adjusted freely to match different yard layouts and shipbuilding process requirements, securing safe and high-efficiency on-site operation.
Optional Configurations
Electric or hybrid trolley driving systems
Automatic control and remote operation modules
Anti-sway and positioning devices for accurate ship component handling
Energy-efficient drive units with regenerative braking function
Customized structural design to fit special yard rail layouts and production procedures
Our professional engineering team guarantees high working efficiency, operational safety and long-term equipment stability, supplying reliable advanced lifting solutions for modern shipyards, workshops and ship construction projects.

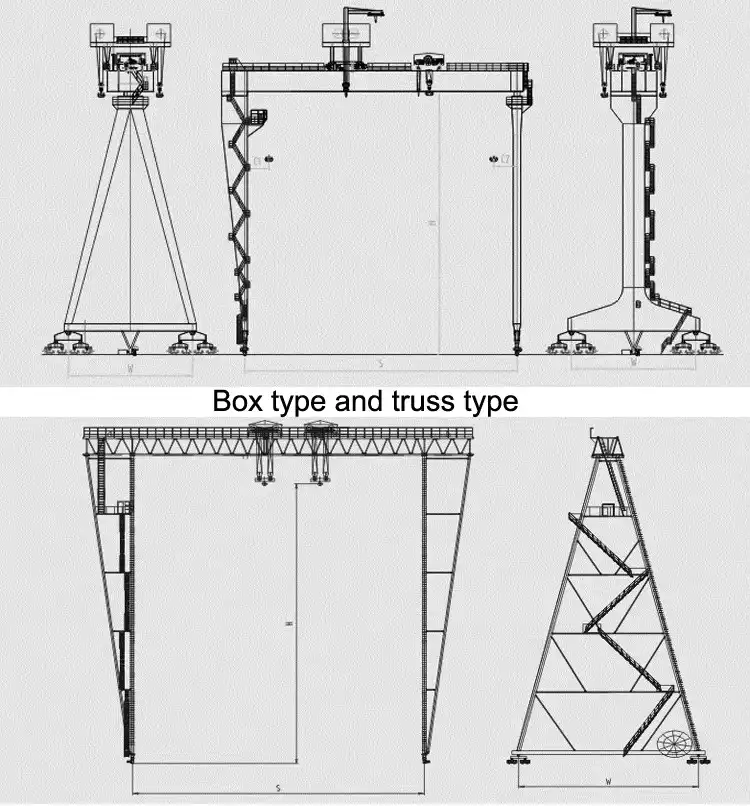

Technical Parameters
| Item | Sub Item | Unit | Specifications | ||||
|---|---|---|---|---|---|---|---|
| Lifting capacity | - | t | 2×50+100 | 2×75+100 | 2×100+160 | 2×150+200 | 2×400+400 |
| Two trolleys lifting | t | 150 | 200 | 300 | 500 | 1000 | |
| Section reverse lifting | t | 100 | 150 | 200 | 300 | 800 | |
| Work classifications | - | A5 | |||||
| Span | S | m | 50 | 70 | 38.5 | 175 | 185 |
| Lifting height (m) | H1 | m | 35 | 50 | 28 | 65/10 | 76/13 |
| H2 | m | 35 | 50 | 28 | 65/10 | 76/13 | |
| Lifting speed (m/min) | Full load | m/min | 0.5-5 | 0.5-5 | 0.4-4 | 0.5-5 | 0.32-3.2 |
| No load | m/min | 1-10 | 1-10 | 0.8-8 | 1-10 | 0.64-6.4 | |
| Crane travelling (m/min) | Full load | m/min | 2.5-25 | 2-20 | 3-30 | 1-25 | 3-30 |
| No load | m/min | 3.5-35 | 3-30 | 4.5-45 | 1-30 | 3-40 | |
| Trolley travelling (m/min) | Full load | m/min | 2.5-25 | 2.5-25 | 3-30 | 1-25 | 3-30 |
| No load | m/min | 2.5-35 | 2.5-35 | 3-45 | 1-30 | 3-40 | |
| Wheel load | KN | 2600 | 7500 | 8000 | 10500 | 11496 | |
| Total power | KW | 400 | 530 | 650 | 1550 | 1500 | |
| Power | - | 3-phase AC 50Hz 10KV | |||||
