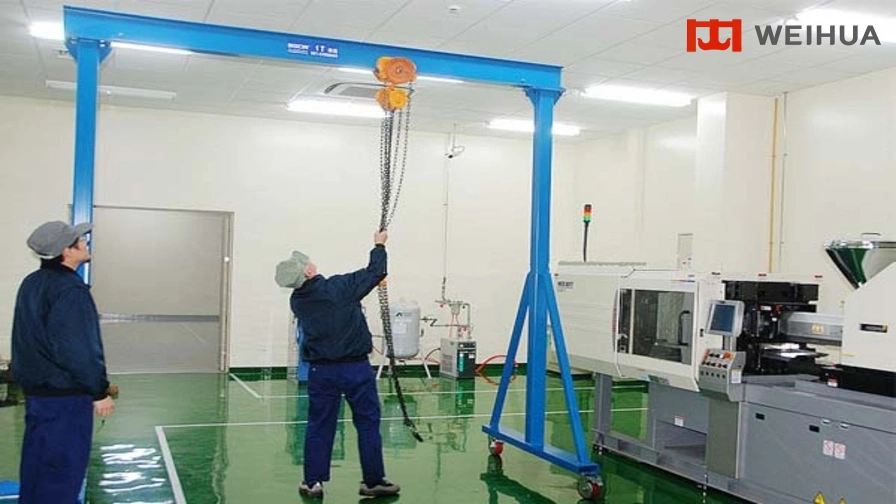

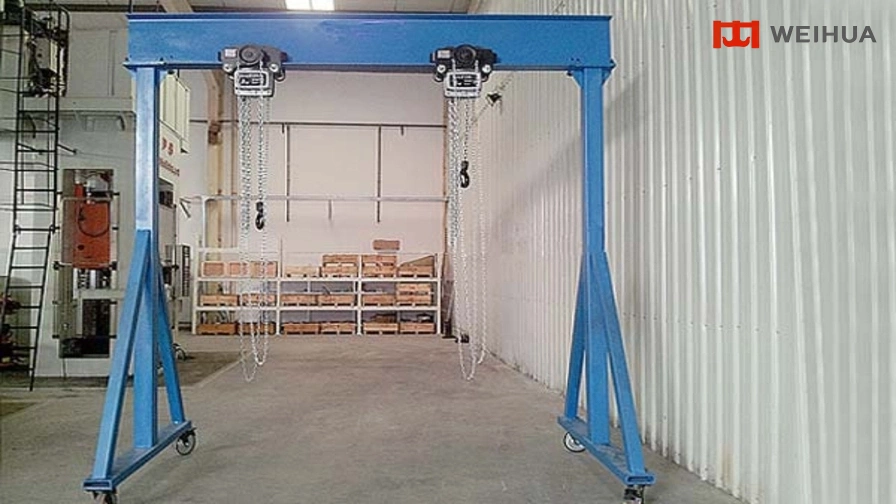

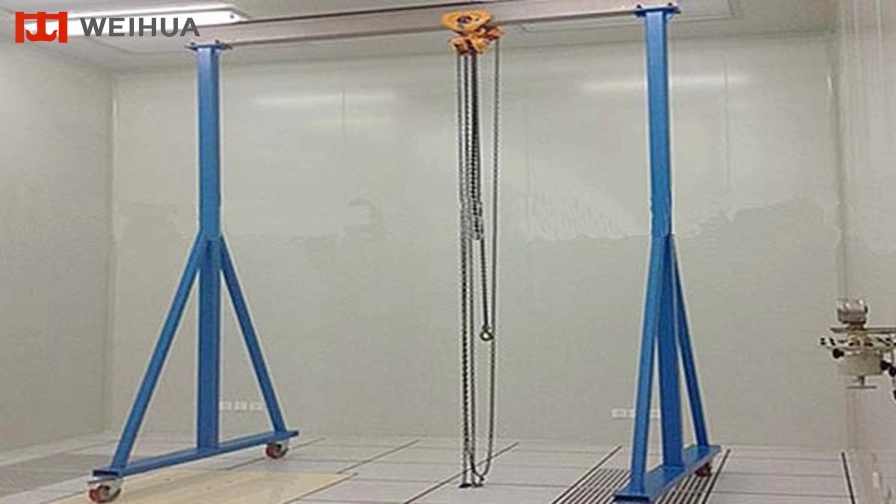

Also known as the economical portable gantry crane, the movable light-duty gantry crane features a maximum lifting capacity of 10 tons. It is most commonly applied for light load handling under 3 tons, serving as an ideal alternative for scenarios where overhead travelling cranes are not applicable. Adopting a unique modular assembly structure, the crane can be quickly disassembled into separate components for convenient transportation and flexible relocation.
This portable gantry crane supports compatibility for multiple hoisting equipment, including manual chain hoists, electric chain hoists and wire rope electric hoists. Such versatile matching capability enables the equipment to meet diversified operational demands for different light-duty handling tasks.
1. Standard prefabricated modular design simplifies overall disassembly, transportation and on-site assembly procedures.
2. Capable of quick installation and stable operation on any flat and hardened ground without complex foundation construction.
3. Versatile applicability for a wide range of light and medium material handling scenarios in workshops and warehouses.
4. Cost-effective for single-unit independent operation, delivering high economic benefits for small-scale lifting work.
5. Lightweight structural design greatly cuts installation labor time and overall deployment costs.
6. Optimized mechanical structure and reliable configuration create a stable and safe operating environment.
7. Flexible compatibility with both manual and electric hoists to realize diversified lifting functions.
Weihua Crane offers fully customized movable light-duty gantry crane solutions tailored for factory workshops, small warehouses and temporary outdoor operation sites. Designed for light to medium industrial material handling, the equipment delivers stable load capacity and precise operation, with reliable performance for daily industrial cargo management.
Core parameters including lifting capacity, working span, lifting height and track specifications support flexible adjustment to adapt to various site layouts and light-duty handling demands, realizing efficient, smooth and safe daily operation.
Optional Configurations
Electric and hybrid trolley drive systems
Intelligent automatic control and remote operation system
Professional anti-sway and positioning device for high-precision light-load handling
Energy-saving drive units equipped with regenerative braking function
Customized structural design to match exclusive workshop and warehouse track layouts
Our professional engineering team guarantees high operational efficiency, intrinsic safety and long-term equipment stability, providing practical and advanced lifting solutions for modern industrial workshops, storage warehouses and regular light-duty material handling scenarios.
Technical Parameters
| Item | Parameter Value |
|---|---|
| Lifting capacity (ton) | 0.5 / 1 / 2 / 3 / 5 / 10 |
| Span | 1-12m (Customizable as customer demand) |
| Lifting Height | 1-15m (Customizable as customer demand) |
| Wheel No. | 4 |
| Lifting equipment | Manual hoist / Electric wire rope hoist / Electric chain hoist |
| Power Supply | 3-phase AC 50HZ 380V |
