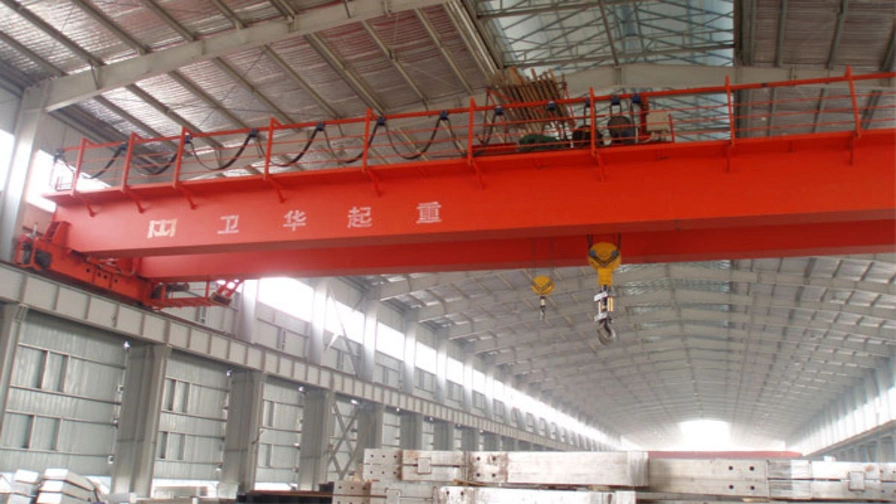

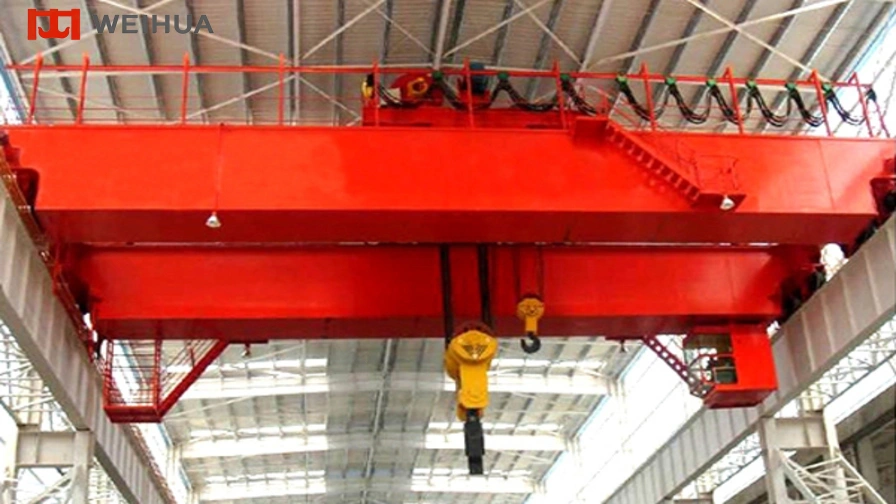

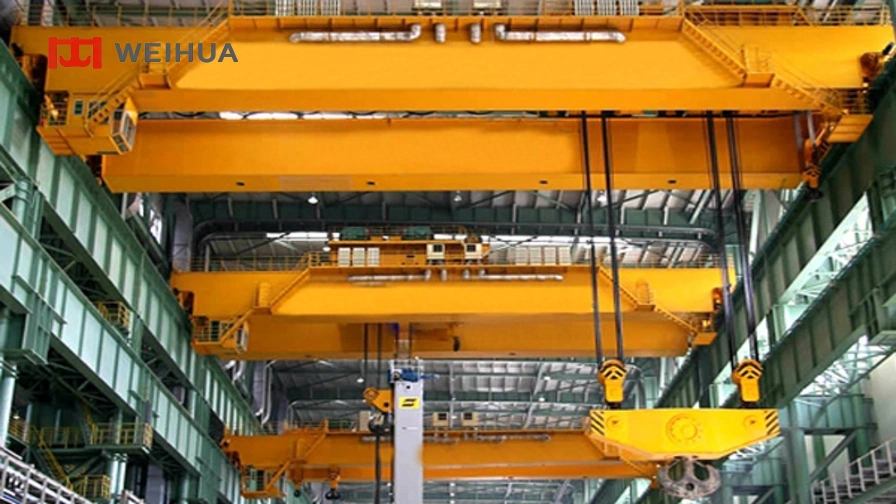

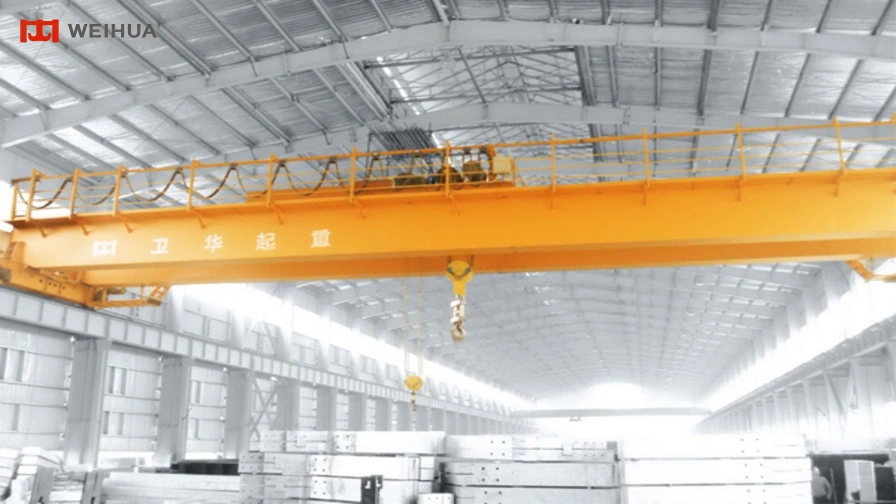

Insulation overhead cranes are special lifting equipment extensively deployed in electrolytic non-ferrous metal smelting workshops, including electrolytic aluminum and magnesium production lines. The complete crane set consists of box-type main girders, long-travel running mechanisms, hoist trolleys and full electrical assemblies.

Electrolysis workshops feature high-current working environments. To avoid electric current conducting from the hoisting assembly to the whole crane and causing fatal safety hazards to operators, key load-bearing components of this crane adopt layered insulation isolation treatment. The crane is designed for heavy-duty continuous operation class, therefore the main hoisting system is fitted with dual independent brakes to fully guarantee safe stable production.

Weihua full-series overhead lifting equipment is widely applied across mechanical manufacturing, ferrous & non-ferrous metallurgy, power generation, railway logistics, port terminals, petroleum exploitation and chemical processing industries. Our specialized lifting cranes provide safe insulated handling support for numerous national key non-ferrous metal electrolysis projects and large metallurgical enterprise production bases worldwide.

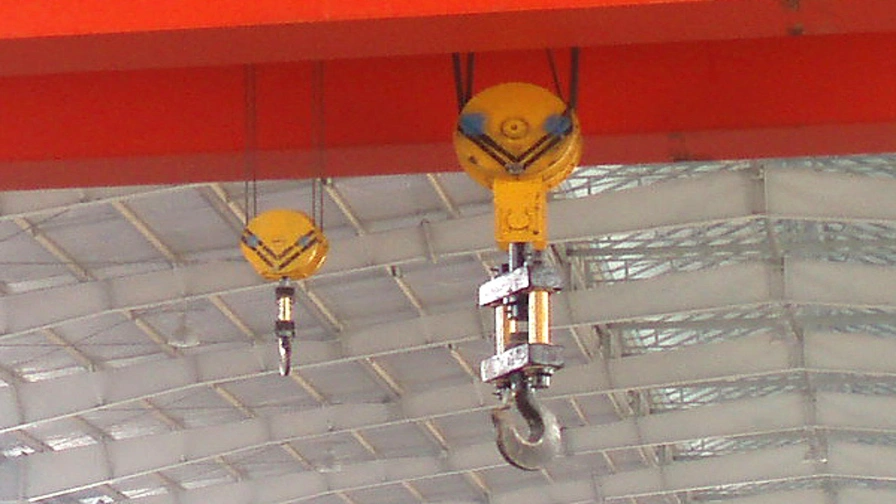

1. Three-layer segmented insulation isolation structure is adopted to block current conduction paths between the lifting hook, pulley blocks, hoisting mechanism, trolley frame and main crane body for comprehensive electric safety protection.

2. Under ambient conditions of 20℃~25℃ and relative humidity ≤85%, the insulation impedance of each isolation section is no less than 1 MΩ.

Weihua Crane delivers fully tailor-made insulated overhead crane packages exclusively built for electrolytic aluminum, electrolytic copper and all non-ferrous metallurgical smelting workshops. Featuring strong heavy-load capacity and high-precision manipulation, these custom cranes maintain stable secure performance for transporting electrolytic cell components and raw materials under high-current corrosive working conditions.

All core technical indicators including lifting tonnage, working span, vertical lifting height and track gauge can be flexibly adjusted to fit diverse workshop layouts and strict anti-conduction insulated lifting standards, supporting consistent efficient and risk-free round-the-clock operation in high-voltage, humid and corrosive environments.

Optional Configurations

• Full-electric and hybrid trolley driving assemblies

• Intelligent full-automatic operation system with wireless remote control module

• Dedicated anti-sway and high-precision positioning unit for stable non-ferrous metallurgical raw material handling

• Energy-saving drive assemblies equipped with regenerative braking function

• Custom structural optimization to match unique runway layouts inside electrolysis smelting workshops
