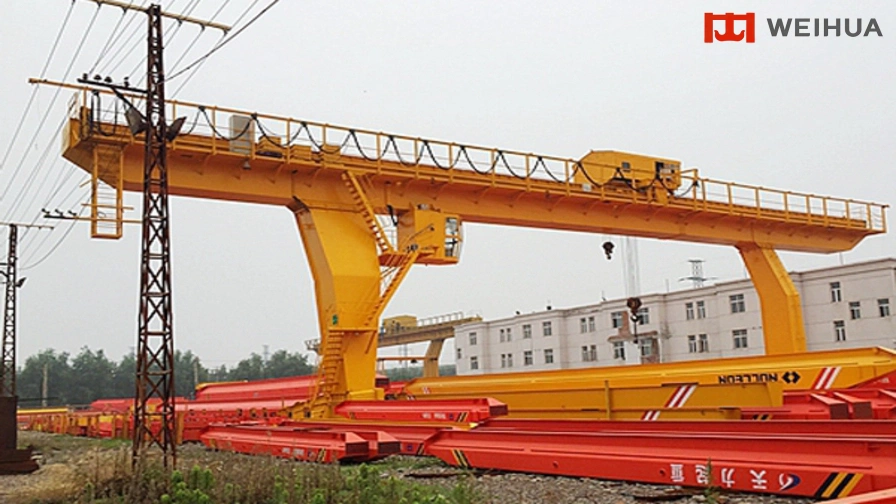

The L-type single girder hook gantry crane is engineered for outdoor material handling and transit operations, widely applicable to warehouses, storage yards, railway freight stations and port cargo zones. Compatible with a variety of customized special spreaders, the equipment can be flexibly adapted to undertake personalized hoisting tasks for diverse industrial scenarios.

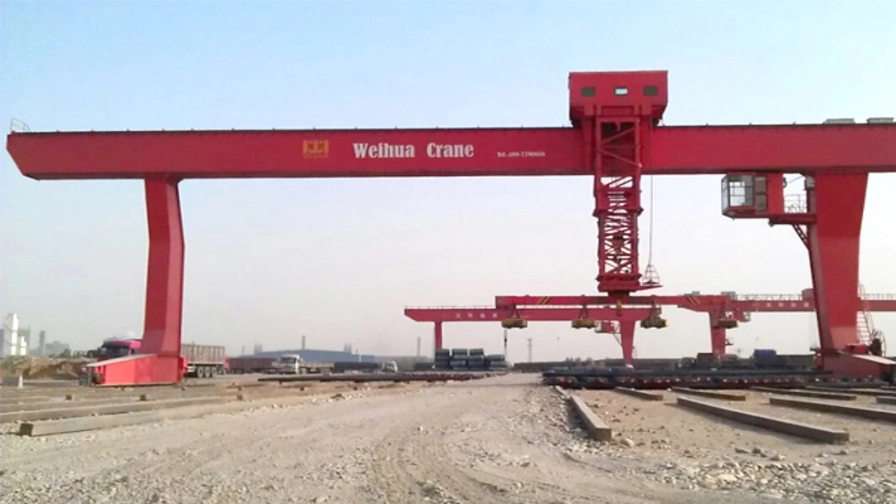

Featuring distinctive L-shaped supporting legs, the crane creates ample under-clearance space and delivers outstanding operational flexibility. It is fitted with a fully enclosed operating cabin, with heat-insulated cabin configurations optional for harsh outdoor working environments. The ergonomically optimized control console ensures comfortable and high-efficiency manual operation.
The equipment supports two flexible power supply modes: cable reel and cable trolley systems, which can be selected according to actual site conditions. All installation positions and core technical specifications support personalized customization to fully match on-site project demands. With a streamlined structural layout, broad operating vision and simple installation procedures, this gantry crane maintains stable and reliable performance under both standard and customized working conditions.
Sturdy and Durable Structure: Adopts box-type main girder paired with integrally welded L-shaped legs. The optimized structural design maximizes effective working space while simplifying daily installation and maintenance work.
Diversified Power Supply Options: Compatible with cable reel and conductor rail power supply systems, with flexible left-side or right-side layout configuration to adapt to different site wiring schemes.
Stable Power Conduction: The trolley power supply system adopts special-shaped rails and safe sliding conduction devices, ensuring continuous and stable power transmission during long-term reciprocating operation.
Highly Standardized Configuration: All core components feature high standardization, serialization and universal compatibility, greatly reducing maintenance difficulty and replacement costs.
Humanized Operating Experience: The enclosed cabin provides a wide field of vision and integrated centralized control. Optional auxiliary configurations including fans, heaters, coolers, air conditioners and intercom systems further improve operating comfort.
Highly Customizable Design: The overall structure can be tailored according to user-specific working environments, power supply modes and span parameters to meet personalized on-site operation requirements.
Weihua Crane delivers fully tailored L-type single girder gantry crane solutions for efficient outdoor material handling. The customized design features flexible operation and optimized space utilization, perfectly suited for industrial scenarios involving long workpieces such as steel pipes, steel structures and timber materials.
Core parameters including lifting capacity, working span, lifting height and leg structure can be flexibly adjusted to adapt to various complex working conditions, providing targeted and efficient lifting solutions for diverse outdoor handling tasks.
Optional Configurations
Optional CD/MD series electric hoist assemblies
Dual control modes: wireless remote control and wired pendant control
Variable frequency drive system for stable and smooth operation
Wind-resistant structure equipped with rail clamping safety devices
Customized structural design for long and oversized bulk material handling
Our professional engineering team guarantees stable mechanical performance, flexible operability and prolonged service life, providing reliable and high-efficiency lifting solutions for warehouses, storage yards and all kinds of outdoor material handling environments.
| Lifting capacity (t) |
Span (m) |
Lifting height (m) |
Work duty | Main lifting (m/min) |
Deputylifting (m/min) |
Trolley travelling (m/min) |
Crane travelling (m/min) |
Power (KW) |
Rail type |
| 5 | 18~22 | 10 | A5 | 9.2 | — | 36.6 | 46.3 | 27.8 | 43Kg/m |
| 26~35 | 11 | 40.1 | 36.8 | ||||||
| 10 | 18~22 | 10 | 8.5 | — | 39.7 | 39.6 | 38 | ||
| 26~35 | 11 | 40.1 | 47 | ||||||
| 16/3.2 | 18~26 | 10 | 7.9 | 11.2 | 39.5 | 40.1 | 64.6 | ||
| 30~35 | 11 | 47.1 | 75.6 | ||||||
| 20/5 | 18~26 | 10 | 7.1 | 9.2 | 39.3 | 40.1 | 67.3 | QU80 | |
| 30~35 | 11 | 47.1 | 78.3 | ||||||
| 32/5 | 18~22 | 10 | 6.3 | 9.2 | 38.6 | 48.2 | 85.5 | ||
| 26~35 | 11 | 38.6 | 93.5 | ||||||
| 50/10 | 18~26 | 10 | 5.9 | 8.5 | 38.5 | 39.7 | 141 | ||
| 30~35 | 12 |
