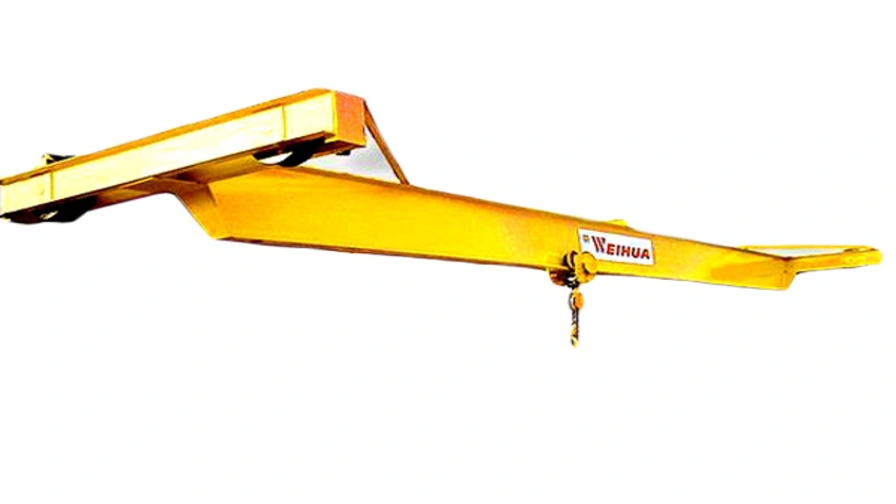

Manual single girder overhead cranes are compact lightweight lifting machines, specially designed for component assembly and equipment maintenance inside workshops without power supply or during power outages. The minimum allowable ambient working temperature is -20℃.

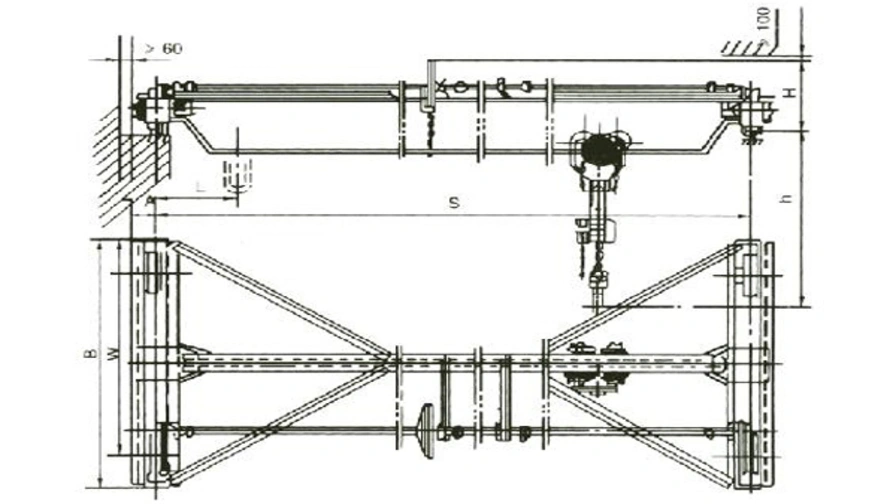

The whole crane assembly consists of main girders, end carriages, drive sprockets, transmission gears, manual monorail trolleys and manual chain hoists.
Basic Technical Specifications
Product Name: Manual Single Girder Overhead Crane
Lifting Capacity: 1t ~ 10t
Standard Lifting Height: 3m ~ 10m
Working Duty Class: A1–A3
Weihua’s full series overhead lifting equipment is widely applied in mechanical manufacturing, metallurgical smelting, power generation, railway transport, port logistics, petroleum exploitation and chemical processing industries. Our lifting machinery provides dependable handling support for numerous national key construction projects and production bases of large industrial groups.
Ultra-compact structural layout and light dead weight for easy installation
Stable and precise lifting performance with smooth load travel
Safe, stable and fail-safe manual operation
Low running noise and user-friendly simple operation
Easy daily maintenance; all wearing spare parts feature universal interchangeability
Corresponding electric single girder overhead crane versions are also available for powered workshops
Weihua Crane supplies fully personalized manual single girder overhead crane packages built for small manufacturing workshops, equipment maintenance stations and general light-duty industrial sites. Featuring steady load capacity and accurate manual load positioning, these cranes deliver reliable performance for daily transfer of small workpieces and light raw materials.
All core technical indicators including lifting tonnage, working span, vertical lifting height and track width can be flexibly adjusted to fit various plant layouts and low-load manual lifting demands, supporting efficient and risk-free short-cycle operation.
Optional Configurations
Full-electric and hybrid trolley drive assemblies (upgrade option from manual type)
Intelligent automatic control system and wireless remote control module
Anti-sway and high-precision positioning unit for stable light workpiece handling
Energy-saving drive systems equipped with regenerative braking
Custom structural redesign to fit unique runway layouts in small repair workshops
Our professional engineering team prioritizes easy operation, comprehensive safety protection and long service life, supplying practical lightweight lifting solutions for small processing factories, equipment overhaul workshops and all light industrial production premises.
| Item | Unit | 1t | 2t | 3t | 5t | 10t |
|---|---|---|---|---|---|---|
| Lifting Capacity | t | 1 | 2 | 3 | 5 | 10 |
| Lifting Height | m | 3~10 | ||||
| Work Duty | — | A1~A3 | ||||
| Traveling Speed | Trolley (m/min) | 5.2 | 5.2 | 5.2 | 4.3 | 4.3 |
| Crane (m/min) | 5.3 | 5.9 | 4.7 | 4.7 | 4.2 | |
| Width of Rail | mm | 37~51 | ||||
