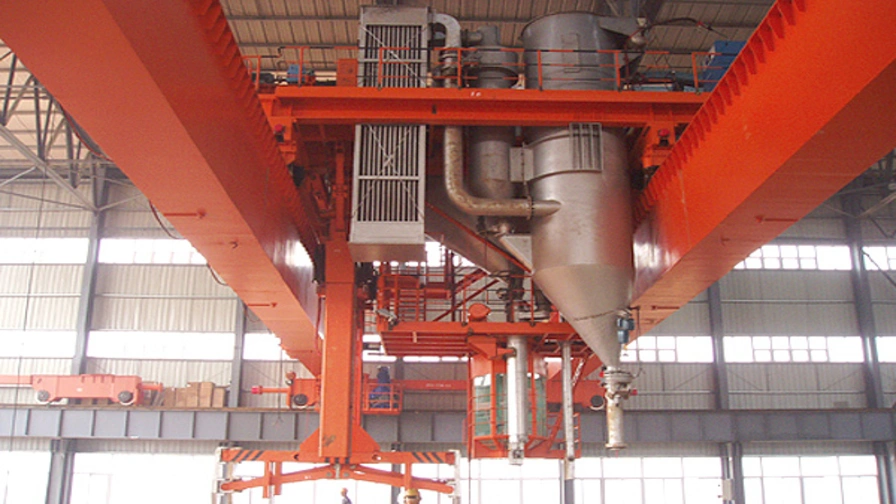

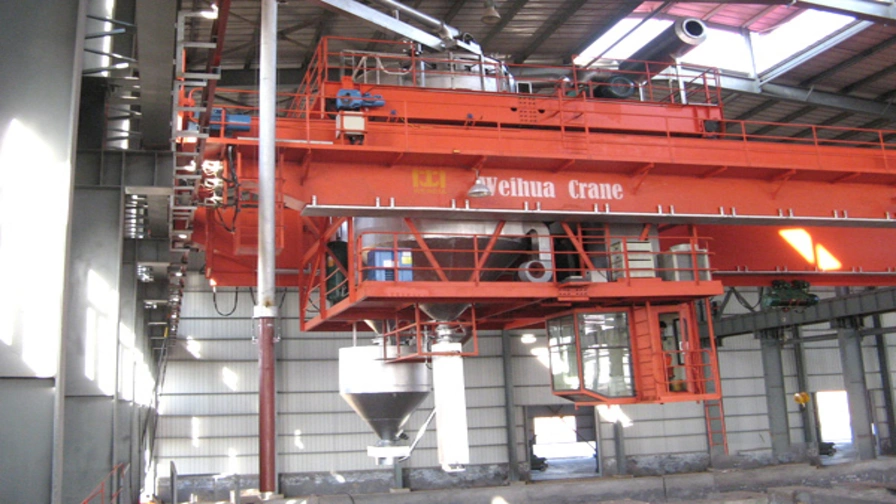

Multifunctional electrolytic aluminum cranes are core auxiliary process equipment for large-scale prebaked anode aluminum electrolysis production lines. This dedicated multifunctional crane can adapt to harsh on-site conditions including high-temperature molten salt, heavy electric current, strong magnetic fields and dense dust, and fulfills all full-cycle technological procedures of prebaked anode electrolytic aluminum production.

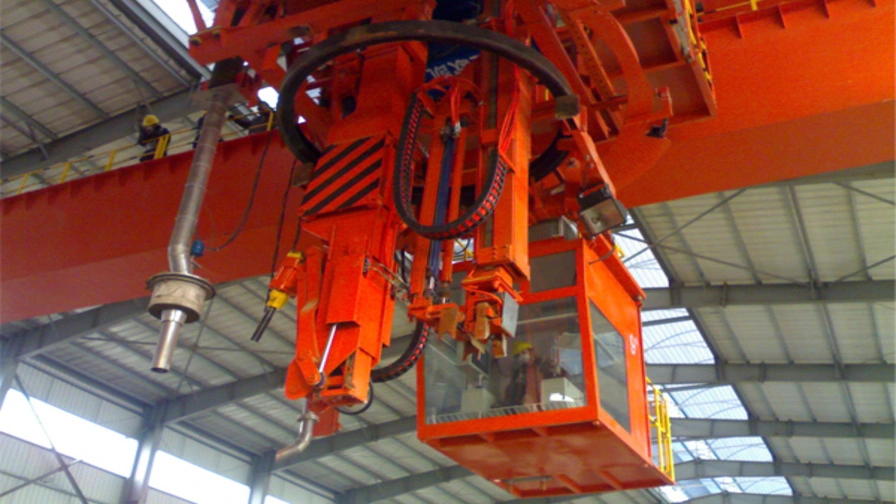

The complete multifunctional electrolytic aluminum crane integrates five independent working mechanisms: automatic feeding mechanism, slag cleaning mechanism, anode replacement mechanism, electrolyte crust breaking mechanism and molten aluminum tapping mechanism.

As large special process equipment exclusive to prebaked aluminum electrolysis workshops, the crane undertakes all core production operations as below:

1. Crust breaking: Break and remove the solid electrolyte crust covering the electrolytic cell surface

2. Anode changing: Extract worn residual anodes and install brand-new replacement anodes

3. Slag skimming: Clear floating hard blocks and impurities from molten aluminum liquid

4. Material feeding: Automatically add alumina powder and thermal insulation covering materials into electrolytic cells

5. Bus frame lifting: Hoist and adjust the conductive bus frame above electrolytic tanks

Weihua full-series overhead lifting equipment is widely applied across mechanical manufacturing, ferrous and non-ferrous metallurgy, power generation, railway transportation, port terminals, petroleum exploitation and chemical industries. Our special process cranes deliver stable, safe and efficient handling support for numerous national key non-ferrous metal electrolysis projects and large metallurgical group production bases globally.

Weihua Crane supplies fully tailor-made multifunctional overhead crane packages dedicated to electrolytic aluminum smelters and non-ferrous metallurgical workshops. Featuring heavy load capacity and ultra-precise coordinated operation, these custom cranes support electrolytic cell maintenance, anode replacement, molten aluminum transfer and daily raw material transportation under extreme harsh working conditions.

All core technical indicators including lifting capacity, working span, lifting height and track gauge can be flexibly adjusted to match different workshop layouts and complex multi-process hoisting standards, guaranteeing stable, high-efficiency and risk-free continuous production within high-temperature, corrosive and dusty environments.

Optional Configurations

• Full-electric and hybrid trolley driving assemblies

• Unmanned full-automatic operation system equipped with wireless remote control module

• Integrated anti-sway and high-precision positioning unit for accurate electrolysis process operations

• Energy-saving driving systems with regenerative braking function

• Custom structural optimization to fit exclusive runway layouts in electrolytic aluminum workshops

Our professional R&D and engineering team prioritizes high continuous production efficiency, multi-layer insulation, anti-corrosion and anti-magnetic safety protection as well as extended equipment service life, providing advanced all-in-one process lifting solutions for modern electrolytic aluminum manufacturers and non-ferrous metallurgical enterprises.
